Features:
Typical Applications: REQUEST A QUOTE
The ECHO 7 series is available in 4 models
REQUEST A QUOTE
ECHO 7 Specifications
Size: Length 7.25” x Width 4.00” x Height 2.00” (184mm x 101.6mm x 50.8mm)
Weight: 1.15 lbs (.52 kg) with internal Li-Ion battery, 1.0 lb. (.45 kg) with optional Alkaline tray including 3 AA batteries
Display: 3.5” high resolution color display, 320 x 240 pixels (1/4 VGA), sunlight readable, including multiple color choices
Backlight: Light Emitting Diode (LED) backlight. Includes variable light intensity, indoor and outdoor modes
Temperature (Gage operating): -4 to 122F (-20 to 50C)
Package: Designed for IP67 rating, custom, splash-proof, high impact plastic with illuminating rubber keypad for go/no-go testing
Transducer Connector Type: Lemo 00 (2qty)
Bandwidth: 0.5-30 Mhz (-3dB)
Measurement Rate: 4 Hz or 25 Hz.
Pulser: 150V, Square Wave
Range: Thickness range depends on gage type, probe selection and material conditions. Typical range in corrosion mode, .020"-23" (.508 - 584 mm)
Calibration: Cal zero, Cal velocity, Two-point calibration or Auto Calibration performs a two-point calibration using a 5-step test block
Material Velocity Range: .0200 in/usec-.7362 in/ uS (0.508-18.699 mm/ uS)
Batteries: Standard 3.7 V Li Ion internally rechargeable battery (11-27 hours...Standard mode of 4Hz. and 74% brightness: 27 hour continous operation, Fast mode at 25Hz., continuous measurements in echo to echo mode: 11 Hours) or optional alkaline tray for 3 AA batteries
Data XL: Interface program to send and receive stored readings, latest firmware and application set up files as two way communication from ECHO to computer (excel)
USB: USB 2.0
Stored Setups: Storage and recall of calibration and set up files
Memory: Internal memory standard on all models. For Datalogger models 2GB micro SD card standard and expandable up to 32GB
Gain: Low, Standard and High for gages without waveform. 20-94 db in 1 db increments
Zoom: Automatically centers echos in the center of the display independent of material thickness
Units: English, Metric, Microseconds
Temperature correction: Software to correct for varying sound speed as a function of entered temperature
Languages: English, French, German, Spanish, Italian, Russian, Czech, Finnish, Chinese, Japanese, Hungarian
Fast Min/Max: Displays minimum, maximum or both simultaneously with actual thickness at 25 Hz.
Alarms: Gage vibrates and beeps. Display changes color based on alarm condition
Transducers: Single, dual, delay lines, contact, immersion
Measurement Types: Main bang to first backwall echo, echo to echo and velocity mode (displays acoustic sound speed based on entered thickness)
Freeze Mode: Direct access to freeze display (ideal for high temperature applications)
Hold Mode: Holds display to retain last thickness reading
Warranty: Limited 2 year warranty under normal use on parts and labor for gage. Optional Dan-A-Care to add up to 3 more years
Shut off: selectable auto shut off 1-31 minutes or never shut off
Differential Mode: Displays the difference from actual thickness measurement in absolute or percentage of a user entered reference value
Resolution: .001” or .010” as corrosion gage and .001”
Transport case: Hard Plastic with high density molded foam cut out for gage and most accessories
Certifications: CE certified, RHOS compliant, designed for IP67
Accessory Mount: ECHO 9 includes a 1/4x20 standard connection point on the back of the unit to allow for a multitude of accessories including a magnetic pipe attachment and a Gorilla Pod
Standard Inclusions: ECHO 9 series ultrasonic thickness gage, DKS-537, 5MHz, 0.375 inch diameter transducer with potted cable, 2oz bottle of couplant, operation manual, Data XL interface program, USB cable, Charger Adapter, Transport Case *A transducer is included with each model. Contact Danatronics for details
Available Software Options: Datalogger with B-scan, Live waveform, (Precision mode, Oxide scale, Coating thickness...Q1 2016)
Hardware Options: EZ Scan Bscan Encoder, Bluetooth, Alkaline battery tray, rubber boot REQUEST A QUOTE
ECHO Software Options are easy and convenient to upgrade in the field. Danatronics™ gage upgrades are done directly from your gage's keypad and do not require the use of a computer.
The following are available upgrades for the ECHO 7
REQUEST A QUOTE
ECHO 7 Accessories
REQUEST A QUOTE
Danatronics™ offers a wide variety of single element transducers from .5-20 Mhz , including, contact, delay lines including pencil probes and immersion transducers for special applications. Consult Danatronics™ or one of our authorized representative for the proper use and recommendation for your application.
For complete list including specifications please see our transducer chart
REQUEST A QUOTE
ECHO 7
Danatronics™ ECHO-7 series of hand held precision ultrasonic thickness gage with 3.5” color display comes in 4 models ranging from our ECHO-7 to the fully loaded ECHO-7DLW that includes default setups for a wide variety of transducers as well as custom stored setups, all with 1 micron resolution, "unlimited" reading datalogger via an up to 32Gb micro SD card memory and a live Waveform (A-Scan). So you if are measuring thin coil steel
Danatronics™ offers our newest ultrasonic precision thickness gage line, the ECHO 7 series. ECHO 7 represents our most advanced thickness gage ever. ECHO 7 offers a 3.5” high resolution sunlight readable color display with live A-Scan, use of a wide variety of contact, delay line and immersion probes from 1-20 Mhz as default and custom created and stored applications setups, B-Scan, datalogger with up to 32GB of SD card memory and interface to Microsoft excel. The ECHO 7 is available in 4 models including the ECHO 7, ECHO 7DL, ECHO 7W and ECHO 7DLW. The vibrate on alarm feature is the world’s first and is great for loud environments

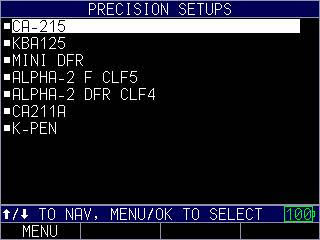

ECHO 7 is a direct replacement to the CL5 precision gage that includes setups for CA-215, KBA125, Mini DFR, Alpha-2 F CLF5, Alpha-2 DFT CLF4, CA211A and K-pen
Unsure which ECHO series gage is right for you? Our ECHO series chart can help you decide.
- .007-1" with one delay line transducer
- Measures paint over plastic or paint over steel as thin as 0.001"

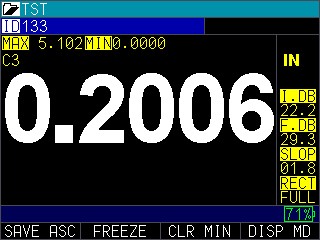

- Simultaneous Live Color A-Scan and Thickness Display
- 3.5” Sunlight readable color display
- Field upgradeable software options including live waveform, datalogger or both
- Fast/Min and Fast/Max displays minimum, maximum or both simultaneously with actual thickness at 25 Hz
- Compatible with a wide variety of Danatronics single element transducers
- Multiple languages
- Datalogger interfaces with Microsoft Excel
- Designed for IP67
- Made in the USA
- Direct replacement to CL5 precision gage
Typical Applications:
- Coil steel
- Plastic parts (bottles, toys, pipes, tanks and trays)
- Aluminum
- Glass
- Fiberglass
- Rubber
ECHO 7
Hand-Held Digital Ultrasonic thickness gage with 3.5" Sunlight Readable Color Display for thickness only including: Class 1, Class 2 and Class 3 Measurement, Plastic Carrying Case, 2 Oz. bottle of couplant (C-02G), Re-Chargeable Li. Ion batteries, a Transducer up to 10 Mhz, lemo to microdot cable, Charger adapter with usb cable and data xl interface program
Hand-Held Digital Ultrasonic thickness gage with 3.5" Sunlight Readable Color Display for thickness only including: Class 1, Class 2 and Class 3 Measurement, Plastic Carrying Case, 2 Oz. bottle of couplant (C-02G), Re-Chargeable Li. Ion batteries, a Transducer up to 10 Mhz, lemo to microdot cable, Charger adapter with usb cable and data xl interface program
ECHO 7W
Includes all the features of the ECHO 7 plus a live color waveform (A-scan). (No Datalogger) with the live waveform, you can adjust range, gain, blanks and rectification.
Includes all the features of the ECHO 7 plus a live color waveform (A-scan). (No Datalogger) with the live waveform, you can adjust range, gain, blanks and rectification.
ECHO 7DL
Includes all the features of the ECHO 7 plus “unlimited” reading Datalogger with export to excel, B-scan (2 GB removable micro SD card standard, other Micro SD cards up to 32GB are optional). Data XL interface program to export saved readings to p.c. (excel)
Includes all the features of the ECHO 7 plus “unlimited” reading Datalogger with export to excel, B-scan (2 GB removable micro SD card standard, other Micro SD cards up to 32GB are optional). Data XL interface program to export saved readings to p.c. (excel)
ECHO 7DLW
Combines all the features such as Hand-Held Digital Ultrasonic thickness gage with live Color Waveform, “unlimited” thickness readings via internal Datalogger with removable micro sd card including: Plastic Carrying Case (PC-09) , 2 Oz. bottle of couplant (C-02G), Re-chargable Li Ion Battery, a transducer up to 10 Mhz., lemo to microdot cable, Class 1, Class 2 and Class 3 Measurement and B-Scan, A Custom Rubber boot with built in bail and 4 point chest harness, Charger adapter with usb cable and Data XL interface program to export saved readings to p.c. (excel). ECHO 7DLW also includes the ability to display the thickness of the optional oxide scale and the boiler tube wall thicknesses at the same time as well as the ability to calibrate on their individual sound velocities.
Combines all the features such as Hand-Held Digital Ultrasonic thickness gage with live Color Waveform, “unlimited” thickness readings via internal Datalogger with removable micro sd card including: Plastic Carrying Case (PC-09) , 2 Oz. bottle of couplant (C-02G), Re-chargable Li Ion Battery, a transducer up to 10 Mhz., lemo to microdot cable, Class 1, Class 2 and Class 3 Measurement and B-Scan, A Custom Rubber boot with built in bail and 4 point chest harness, Charger adapter with usb cable and Data XL interface program to export saved readings to p.c. (excel). ECHO 7DLW also includes the ability to display the thickness of the optional oxide scale and the boiler tube wall thicknesses at the same time as well as the ability to calibrate on their individual sound velocities.
Size: Length 7.25” x Width 4.00” x Height 2.00” (184mm x 101.6mm x 50.8mm)
Weight: 1.15 lbs (.52 kg) with internal Li-Ion battery, 1.0 lb. (.45 kg) with optional Alkaline tray including 3 AA batteries
Display: 3.5” high resolution color display, 320 x 240 pixels (1/4 VGA), sunlight readable, including multiple color choices
Backlight: Light Emitting Diode (LED) backlight. Includes variable light intensity, indoor and outdoor modes
Temperature (Gage operating): -4 to 122F (-20 to 50C)
Package: Designed for IP67 rating, custom, splash-proof, high impact plastic with illuminating rubber keypad for go/no-go testing
Transducer Connector Type: Lemo 00 (2qty)
Bandwidth: 0.5-30 Mhz (-3dB)
Measurement Rate: 4 Hz or 25 Hz.
Pulser: 150V, Square Wave
Range: Thickness range depends on gage type, probe selection and material conditions. Typical range in corrosion mode, .020"-23" (.508 - 584 mm)
Calibration: Cal zero, Cal velocity, Two-point calibration or Auto Calibration performs a two-point calibration using a 5-step test block
Material Velocity Range: .0200 in/usec-.7362 in/ uS (0.508-18.699 mm/ uS)
Batteries: Standard 3.7 V Li Ion internally rechargeable battery (11-27 hours...Standard mode of 4Hz. and 74% brightness: 27 hour continous operation, Fast mode at 25Hz., continuous measurements in echo to echo mode: 11 Hours) or optional alkaline tray for 3 AA batteries
Data XL: Interface program to send and receive stored readings, latest firmware and application set up files as two way communication from ECHO to computer (excel)
USB: USB 2.0
Stored Setups: Storage and recall of calibration and set up files
Memory: Internal memory standard on all models. For Datalogger models 2GB micro SD card standard and expandable up to 32GB
Gain: Low, Standard and High for gages without waveform. 20-94 db in 1 db increments
Zoom: Automatically centers echos in the center of the display independent of material thickness
Units: English, Metric, Microseconds
Temperature correction: Software to correct for varying sound speed as a function of entered temperature
Languages: English, French, German, Spanish, Italian, Russian, Czech, Finnish, Chinese, Japanese, Hungarian
Fast Min/Max: Displays minimum, maximum or both simultaneously with actual thickness at 25 Hz.
Alarms: Gage vibrates and beeps. Display changes color based on alarm condition
Transducers: Single, dual, delay lines, contact, immersion
Measurement Types: Main bang to first backwall echo, echo to echo and velocity mode (displays acoustic sound speed based on entered thickness)
Freeze Mode: Direct access to freeze display (ideal for high temperature applications)
Hold Mode: Holds display to retain last thickness reading
Warranty: Limited 2 year warranty under normal use on parts and labor for gage. Optional Dan-A-Care to add up to 3 more years
Shut off: selectable auto shut off 1-31 minutes or never shut off
Differential Mode: Displays the difference from actual thickness measurement in absolute or percentage of a user entered reference value
Resolution: .001” or .010” as corrosion gage and .001”
Transport case: Hard Plastic with high density molded foam cut out for gage and most accessories
Certifications: CE certified, RHOS compliant, designed for IP67
Accessory Mount: ECHO 9 includes a 1/4x20 standard connection point on the back of the unit to allow for a multitude of accessories including a magnetic pipe attachment and a Gorilla Pod
Standard Inclusions: ECHO 9 series ultrasonic thickness gage, DKS-537, 5MHz, 0.375 inch diameter transducer with potted cable, 2oz bottle of couplant, operation manual, Data XL interface program, USB cable, Charger Adapter, Transport Case *A transducer is included with each model. Contact Danatronics for details
Available Software Options: Datalogger with B-scan, Live waveform, (Precision mode, Oxide scale, Coating thickness...Q1 2016)
Hardware Options: EZ Scan Bscan Encoder, Bluetooth, Alkaline battery tray, rubber boot
The following are available upgrades for the ECHO 7

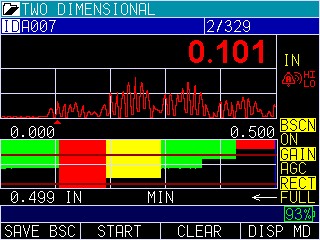

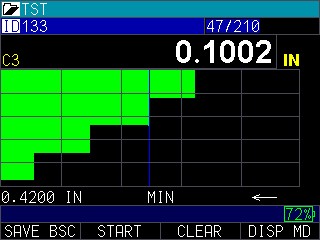

B-Scan
Comes standard on the ECHO-7DL and ECHO-7DLW
This option is only available combined with the Datalogger option. Provides a non-encoded (time base) or a cross section (side view) of the part being inspected. The A-scan and B-scan can now be view at the same time. The operator can scroll where the cursor line is after a B-scan is generated.
Comes standard on the ECHO-7DL and ECHO-7DLW
This option is only available combined with the Datalogger option. Provides a non-encoded (time base) or a cross section (side view) of the part being inspected. The A-scan and B-scan can now be view at the same time. The operator can scroll where the cursor line is after a B-scan is generated.
Bluetooth
Available as an optional upgrade for all ECHO series gages. The bluetooth software option also requires internal hardware modification on the PCB (does not affect other specs, IP rating or require additional power source).
Allows ECHO to export data such as thickness readings or files to another device via internal bluetooth. DataXL mobile can be used to facilitate the transfer of information on IOS and Andriod phones and tablets. DataXL Mobile is coming soon in the Apple store and Google Play Store.
Available as an optional upgrade for all ECHO series gages. The bluetooth software option also requires internal hardware modification on the PCB (does not affect other specs, IP rating or require additional power source).
Allows ECHO to export data such as thickness readings or files to another device via internal bluetooth. DataXL mobile can be used to facilitate the transfer of information on IOS and Andriod phones and tablets. DataXL Mobile is coming soon in the Apple store and Google Play Store.

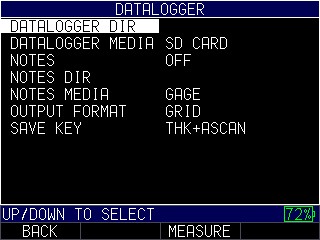

Datalogger
Comes standard with the ECHO 7DL and ECHO 7DLW
The ECHO Series Datalogger stores millions of readings to its removable sd card as linear, 2D, 3D or boiler in alpha numeric or thousands of waveforms (if gage is equipped with waveform option). Thickness values along with the i.d. information and all gage set up parameters are exported to Microsoft excel via the no-charged, included Data XL interface program provided with every Danatronics™ thickness gage. Our Datalogger also interfaces with Ultrapipe. Please contact Danatronics™ for more details.
Comes standard with the ECHO 7DL and ECHO 7DLW
The ECHO Series Datalogger stores millions of readings to its removable sd card as linear, 2D, 3D or boiler in alpha numeric or thousands of waveforms (if gage is equipped with waveform option). Thickness values along with the i.d. information and all gage set up parameters are exported to Microsoft excel via the no-charged, included Data XL interface program provided with every Danatronics™ thickness gage. Our Datalogger also interfaces with Ultrapipe. Please contact Danatronics™ for more details.

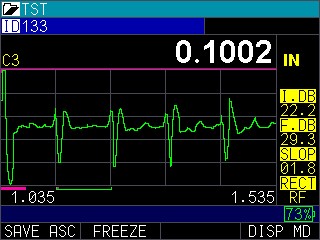

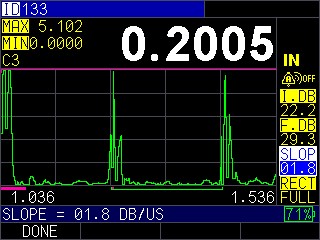

Live Waveform
Comes standard with the ECHO 7W and ECHO 7DLW
The live waveform (A-scan) is used to verify reading stability. With the live waveform the operator can adjust gain, range, rectification and 2 forms of blanking to set the gage to ignore unwanted noise or mode converted echoes.
Comes standard with the ECHO 7W and ECHO 7DLW
The live waveform (A-scan) is used to verify reading stability. With the live waveform the operator can adjust gain, range, rectification and 2 forms of blanking to set the gage to ignore unwanted noise or mode converted echoes.

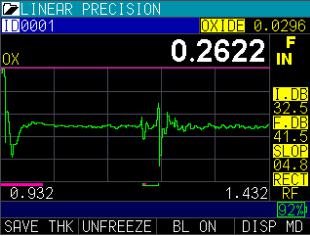

Oxide Scale
Sold as a separate software option for the ECHO 7W or ECHO 7DLW
When equipped with the oxide scale option and 20mhz delay line transducer, both ECHO 7 and ECHO 8 units with live waveform can measure the oxide scale (0.015"-0.040") and tube thickness calibrated to their independent sound speeds.
Sold as a separate software option for the ECHO 7W or ECHO 7DLW
When equipped with the oxide scale option and 20mhz delay line transducer, both ECHO 7 and ECHO 8 units with live waveform can measure the oxide scale (0.015"-0.040") and tube thickness calibrated to their independent sound speeds.

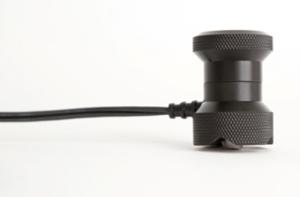

Spring Loaded Holder
The spring loaded holder (SPH-718) is the ideal fixture to be used on small diameter applications such as tubing to prevent the probe from rocking. Shown above is the SPH-718 with the DK718 transducer inside. The probe can be rotated as well and the fixture has v-notches to assist in probe alignment.
The spring loaded holder (SPH-718) is the ideal fixture to be used on small diameter applications such as tubing to prevent the probe from rocking. Shown above is the SPH-718 with the DK718 transducer inside. The probe can be rotated as well and the fixture has v-notches to assist in probe alignment.

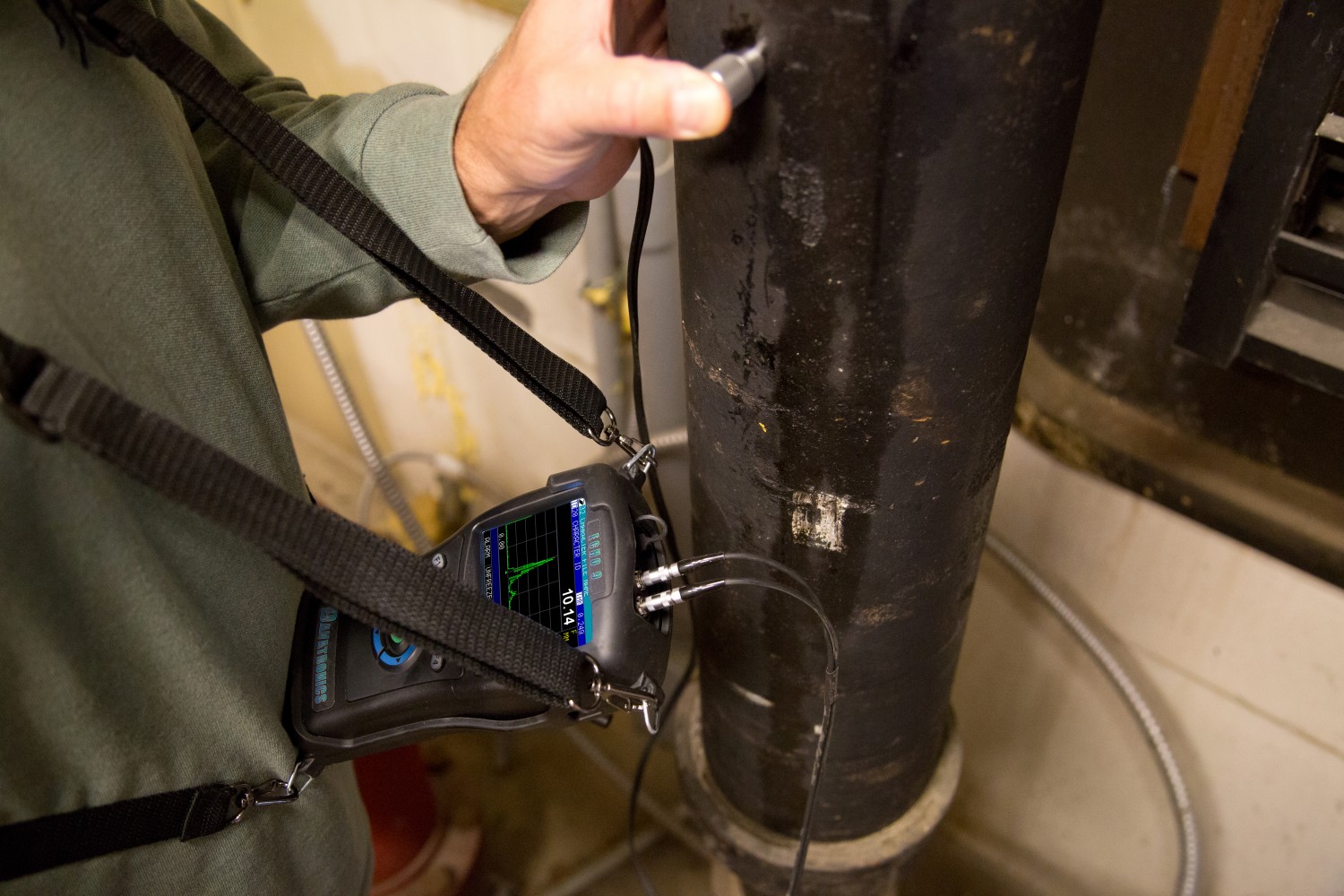

Chest harness
Custom 4 point chest harness with comfortable adjustment of straps for shoulder and waste line. Comes with metal detents
Custom 4 point chest harness with comfortable adjustment of straps for shoulder and waste line. Comes with metal detents

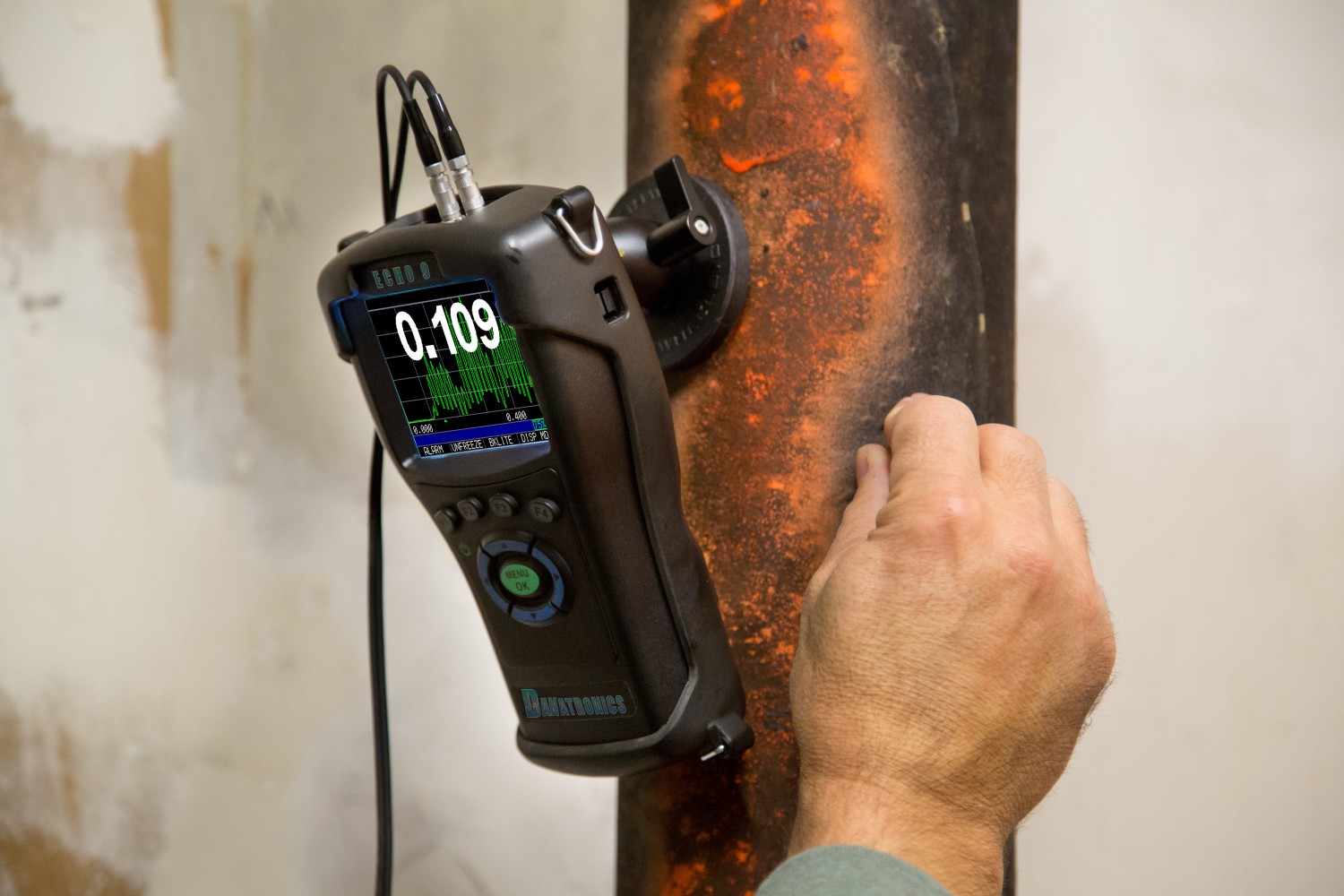

Magnetic Pipe Holder
Available magnetic pipe holder that screws onto the ¼, 20 connector on the ECHO 9. This is ideal to stabilizing the ECHO 9 on a larger pipe or any magnetic surface and can even be used up side down.
Available magnetic pipe holder that screws onto the ¼, 20 connector on the ECHO 9. This is ideal to stabilizing the ECHO 9 on a larger pipe or any magnetic surface and can even be used up side down.

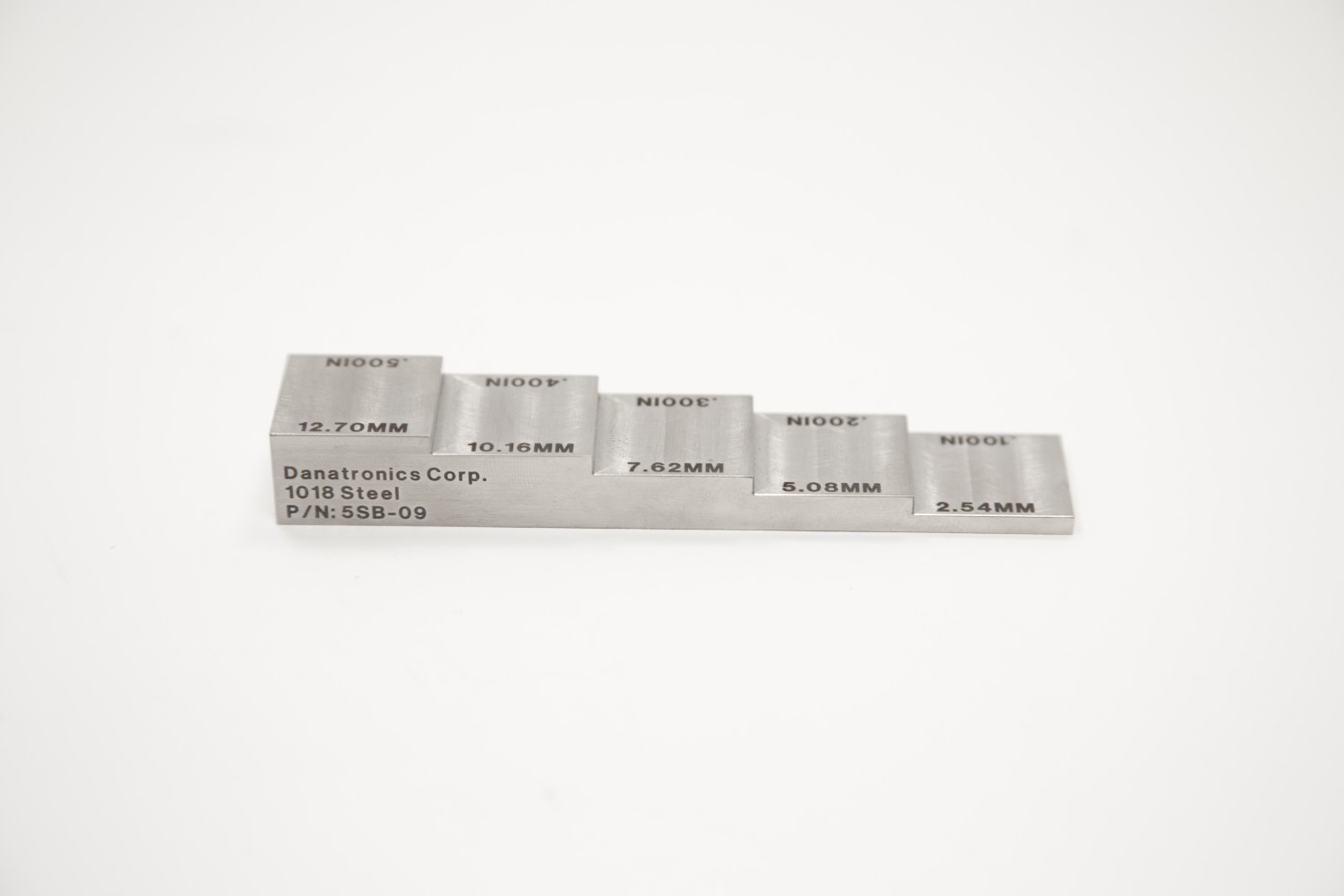

5 Step Test Block
We offer a 5 step test block, made of carbon steel with nickel plating engraved in both English and Metric values from .100’, .200”, .300”, .400”, .500” or 2.54mm, 5.05mm, 7.5mm, 10.0mm, 12.7mm (No certification is provided with these blocks but can be provide on special order for an additional fee)
We offer a 5 step test block, made of carbon steel with nickel plating engraved in both English and Metric values from .100’, .200”, .300”, .400”, .500” or 2.54mm, 5.05mm, 7.5mm, 10.0mm, 12.7mm (No certification is provided with these blocks but can be provide on special order for an additional fee)

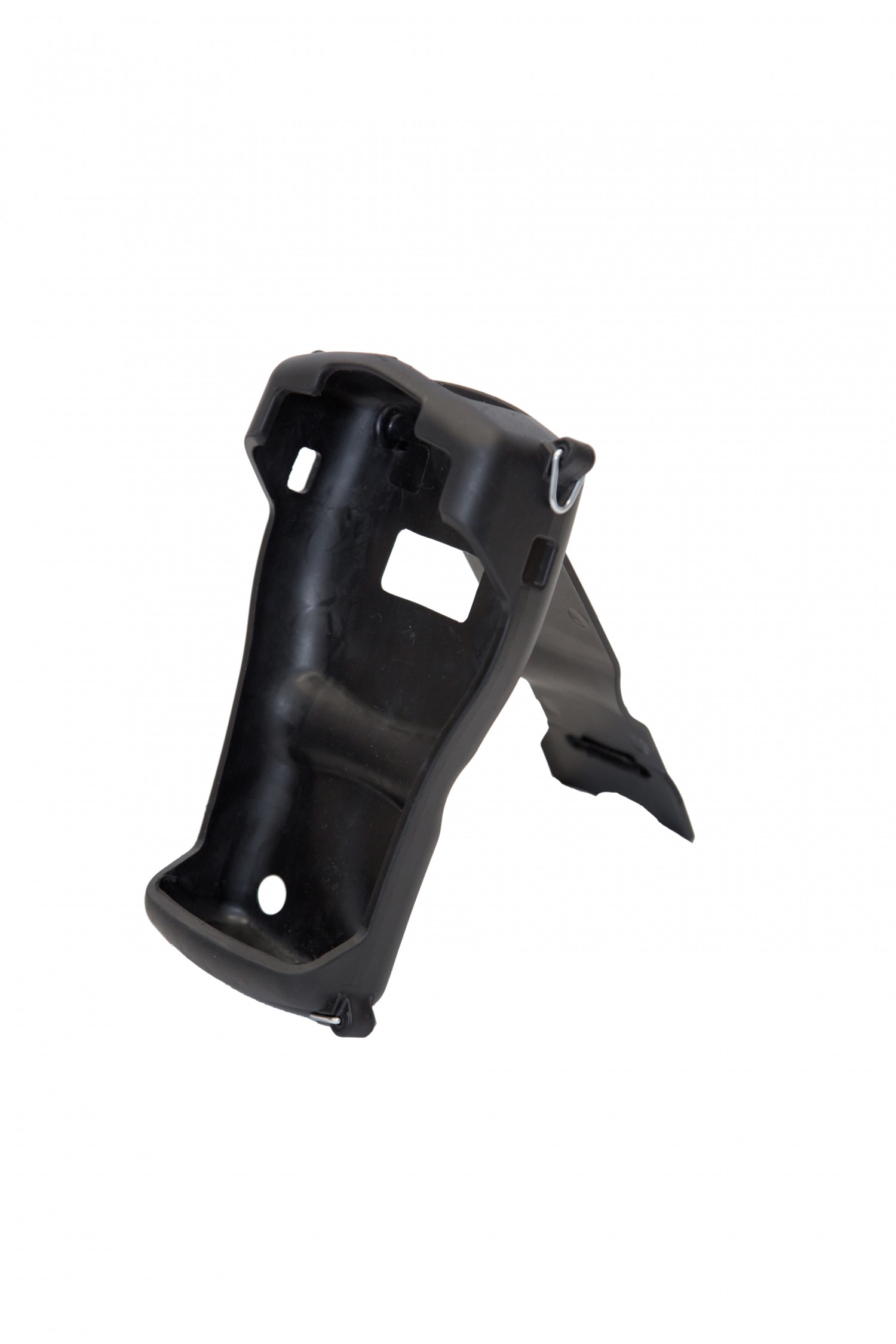

Rubber boot
We offer a custom protective rubber boot with built in bail, 4 point chest harness and unique 2 finger hold strap.
We offer a custom protective rubber boot with built in bail, 4 point chest harness and unique 2 finger hold strap.

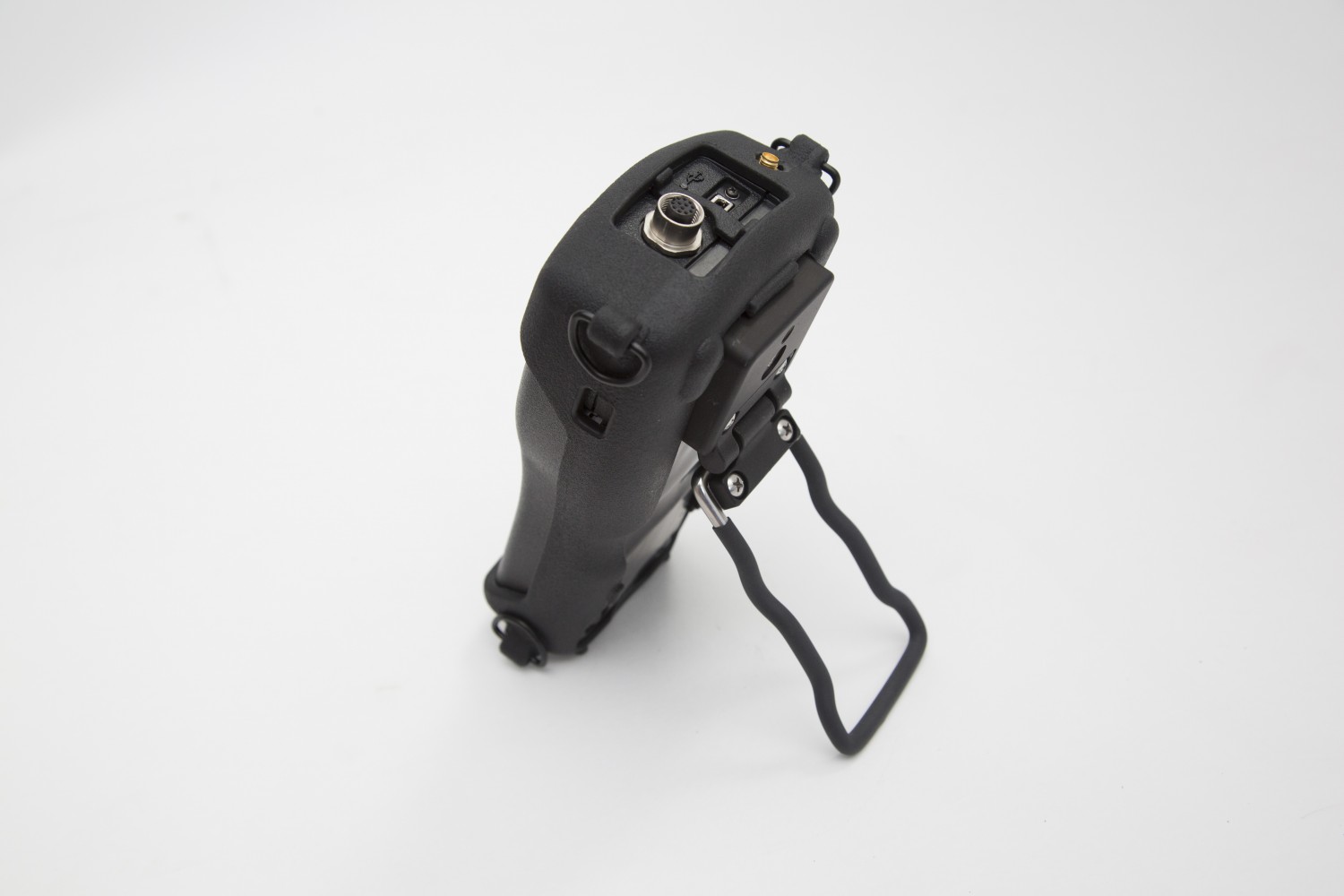

Heavy Duty Bail
Heavy Duty bail for use with rubber boot
Heavy Duty bail for use with rubber boot

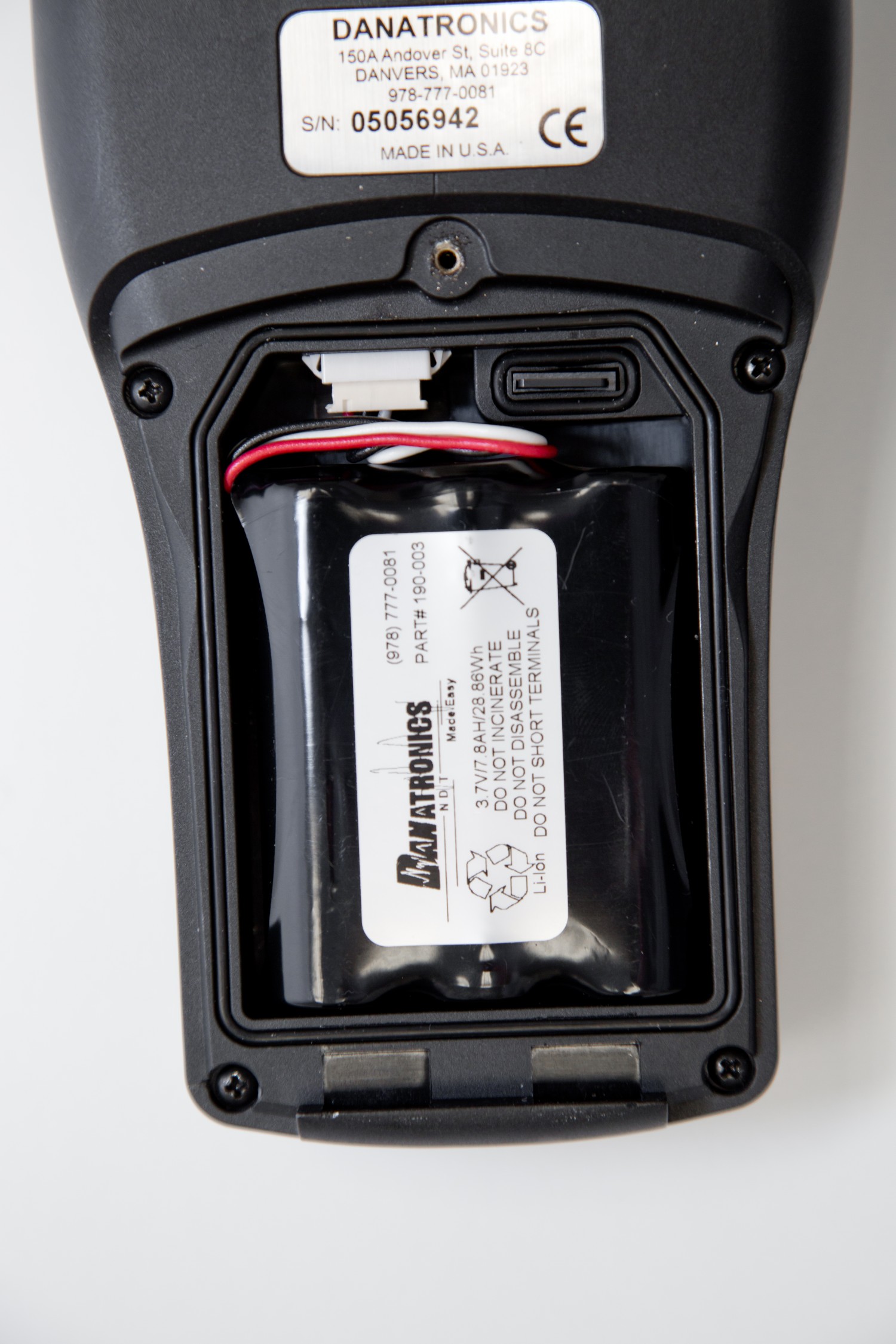

Batteries
Standard 3.7 V Li Ion internally rechargeable battery comes standard
Standard 3.7 V Li Ion internally rechargeable battery comes standard
Cables
Dual and single cables offered in 6 feet or other lengths upon special order. Shown left to right: DLM-06, DLM-06ACMP, LM-06
Dual and single cables offered in 6 feet or other lengths upon special order. Shown left to right: DLM-06, DLM-06ACMP, LM-06

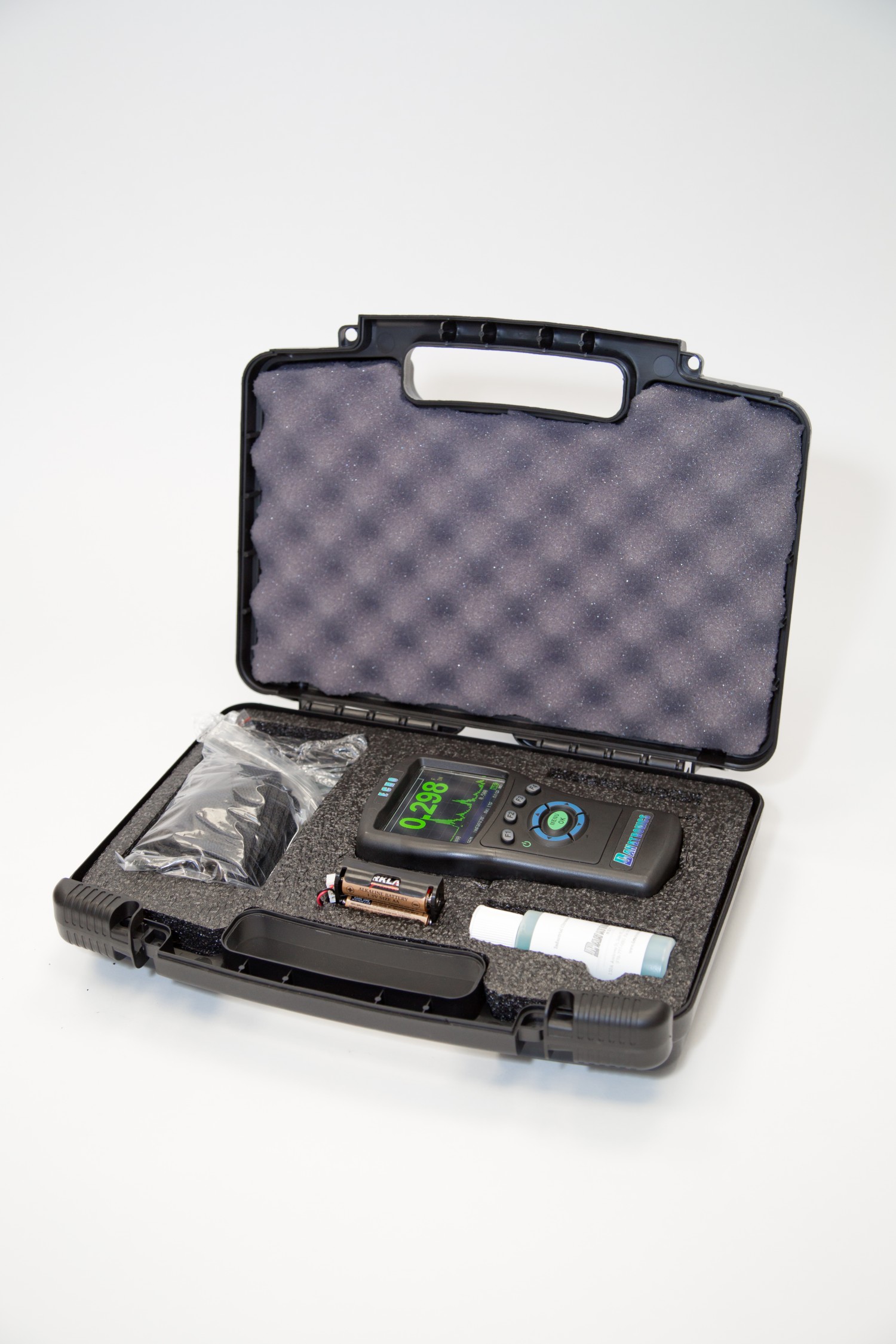

ECHO Transport Case
The ECHO Transport Case is shown with common inclusions. (Spare batteries and 5 step test block sold separately).
The ECHO Transport Case is shown with common inclusions. (Spare batteries and 5 step test block sold separately).

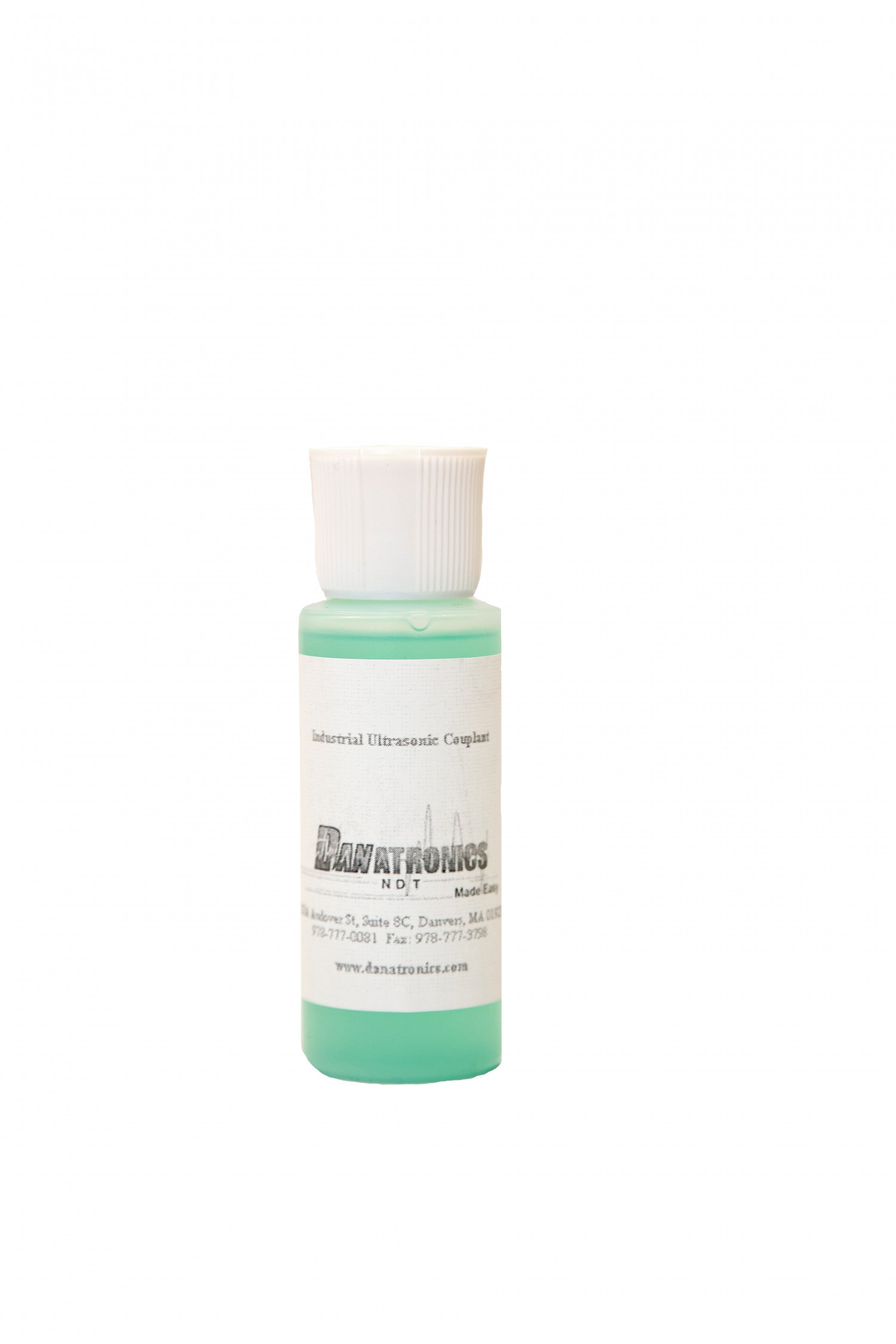

Couplants
We offer a variety of ultrasonic couplants from a standard gel in 2 Oz. or 12 Oz. options, to high temperature up to 1100 Degrees F. Contact us for more details.
We offer a variety of ultrasonic couplants from a standard gel in 2 Oz. or 12 Oz. options, to high temperature up to 1100 Degrees F. Contact us for more details.

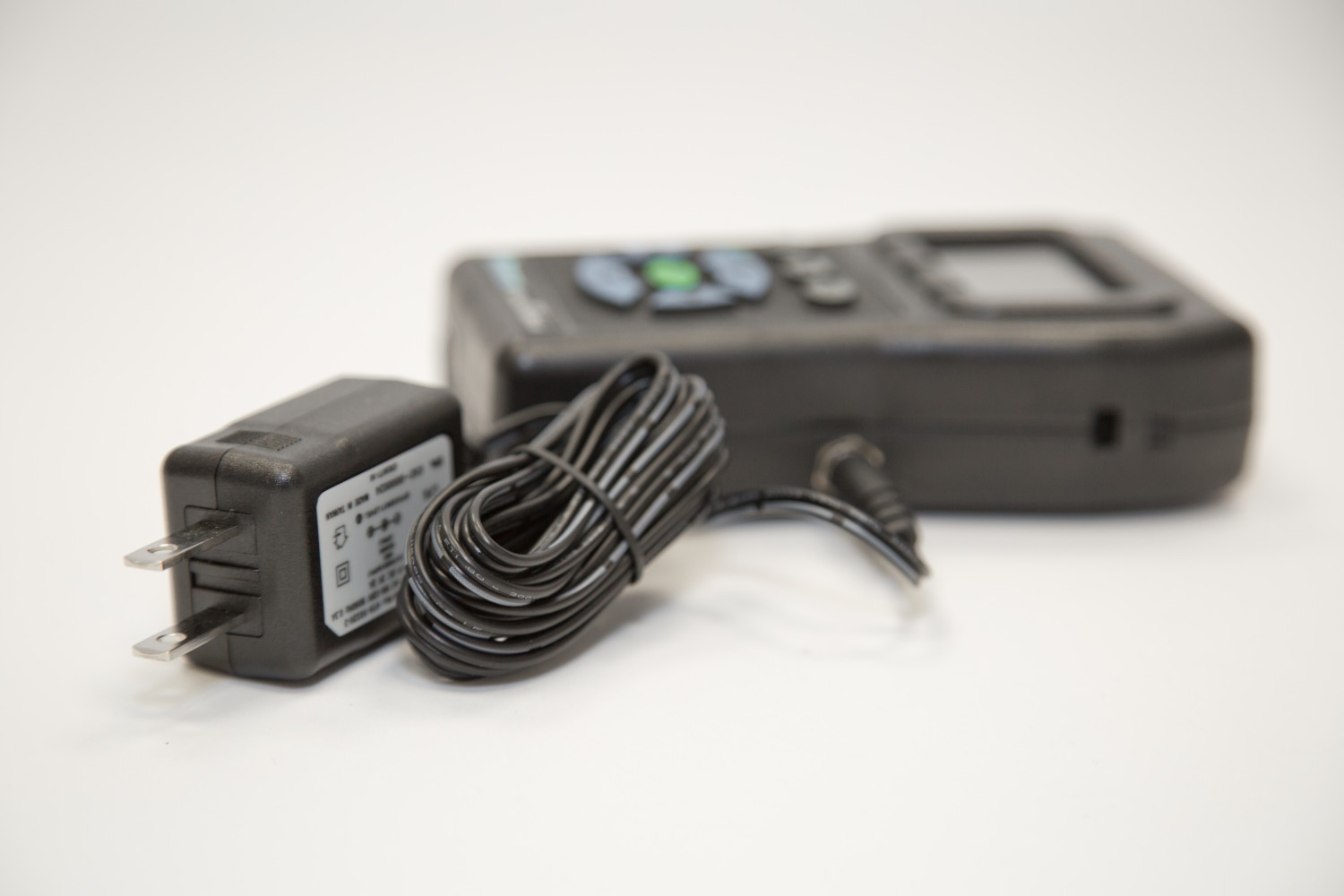

AC Power
ECHO 9 series comes with a convenient AC charger via the USB port so you do not have to replace the batteries on a regular basis.
ECHO 9 series comes with a convenient AC charger via the USB port so you do not have to replace the batteries on a regular basis.

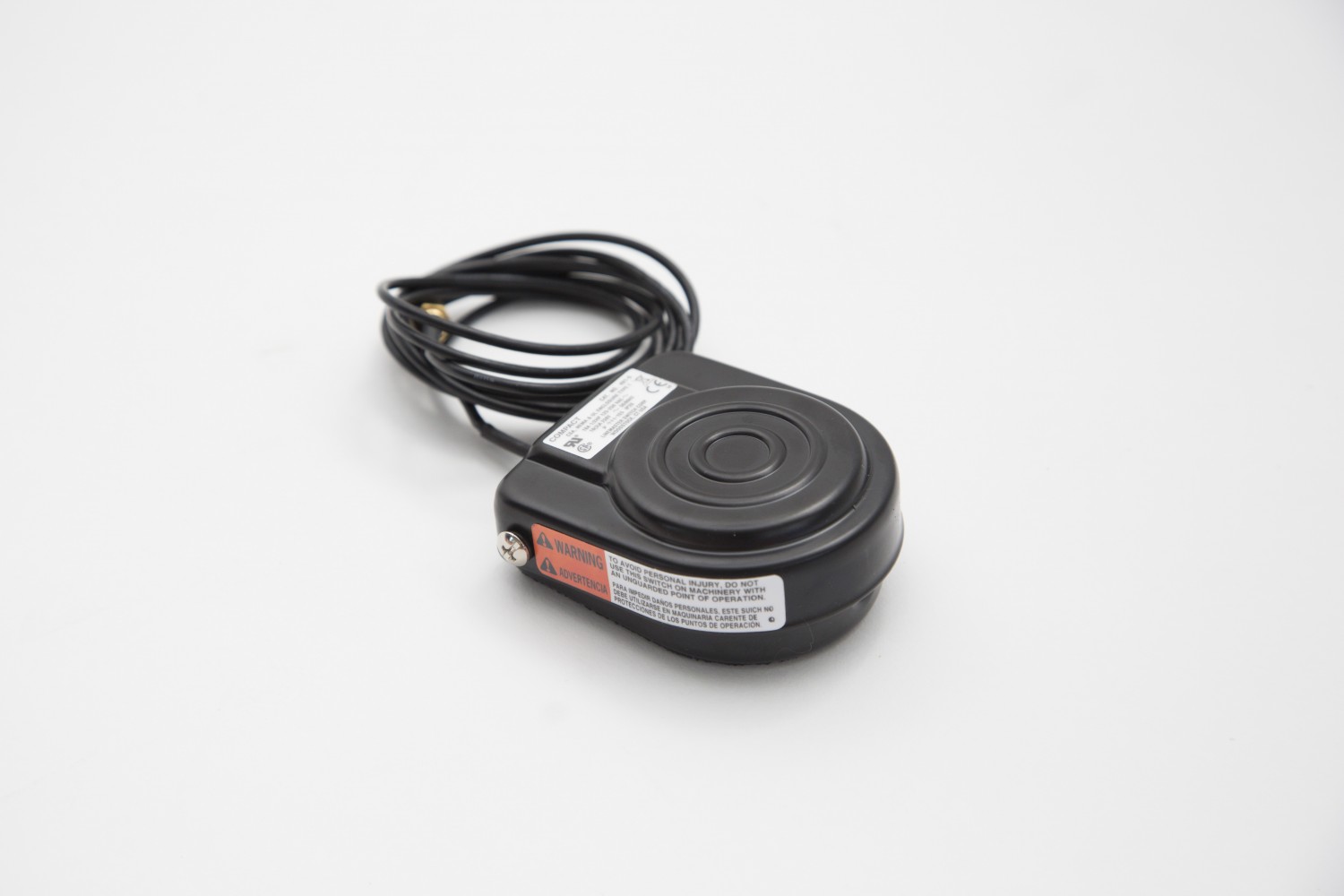

Footswitch
With this hardware option the operator can use a footswitch to save, freeze or send readings.
With this hardware option the operator can use a footswitch to save, freeze or send readings.
For complete list including specifications please see our transducer chart

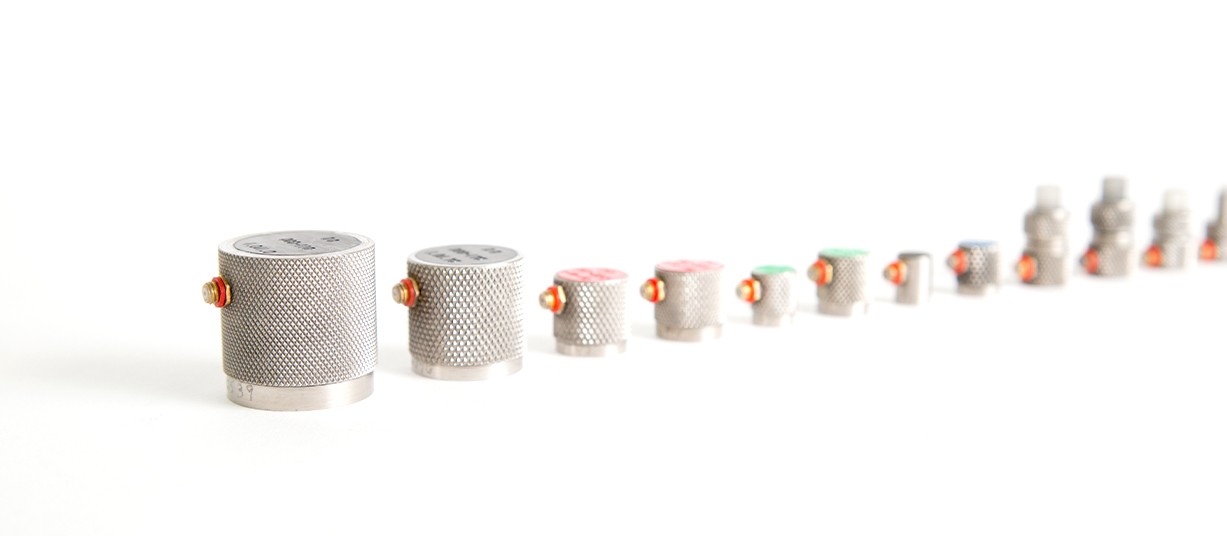

Single Element Contact Transducers
Danatronics™ single element transducers are stocked in a wide variety of frequencies and diameters, from 0.5mHz to 10mHz. All single element probes come standard with microdot connectors
Danatronics™ single element transducers are stocked in a wide variety of frequencies and diameters, from 0.5mHz to 10mHz. All single element probes come standard with microdot connectors
Delay Line Transducers
Danatronics™ delay line transducer are available in 5, 10 and 20 mHZ options.
Danatronics™ delay line transducer are available in 5, 10 and 20 mHZ options.
