Features:
Typical Applications: REQUEST A QUOTE
The VIS 200 is a 100' portable push rod inspection system without recording. It includes a 1" (25.4mm) diameter waterproof to 100 ft. (30M) 5.5 inch TFT monitor with 6 ft (2M) cable, 2 12V batteries to provide 3 hr. operation, carrying case, video out and charger.
REQUEST A QUOTE
Monitor
Dimensions housing: 7" x 4.5" x 1.3"
TFT-display: 7" / 16:9 format
Video out: FBAS signal
Weight: 1 lbs
Power supply
Space for 2 rechargeable batteries, each 12 V or via power pack
Battery operating time
Max. 2 rechargeable batteries, each 120 mins. = 4 h (battery status in display)
Miniature camera head, color 1" mm
Type 1/3" COLOR CMOS
Resolution 420 lines
Pixels 768 x 576 (PAL), 656 x 492 (NTSC)
Light sensitivity: 0.5 Lux
Lens: f = 0.09", F = 2.5
Viewing angle: 115 °
Light source: 12 white LEDs
Degree of protection: Waterproof to IP 68
Dimensions: 1" x 1.5"
Weight: 0.5 lbs
Operation temperature: 32...104 °F, RH 95 % MAX
Storage temperature: -4...122 °F, RH 95 % MAX
Transmitter frequency: 8.9 kHz
Push rod
Length 100 ft.
Diameter 0.24"
Distance measurement
electronic meter counter
Plastic case
Dimensions: 20" x 17" x 7" (l x w x h)
Weight: 15 lbs
Locator receiver
Display: Graphic visualization of transmitted position
Output: impedance
Headphones: 32 Ohm
Power supply: 3.7 V Li-Ion rechargeable battery
Operating temperature: 32...104 °F
Storage temperature: 14...104 °F
Weight: 1.3 lbs
Dimensions: 13" x 6" x 3" (l x w x h)
Memory (Wohler VIS 250)
Recording: 2 GB SD card (2.5 h recording capacity)
Interface: Mini USB port
L200 Locator Specifications
Display: Graphic visualization of transmitted position
Output: impedance
Headphones: 32 Ohm
Power supply: 3.7 V Li-Ion rechargeable battery
Operating temperature: 32...104 °F
Storage temperature: 14...104 °F
Weight: 1.3 lbs
Dimensions: 13" x 6" x 3" (l x w x h)
The following accessories are available for the VIS2xx REQUEST A QUOTE
VIS200/250

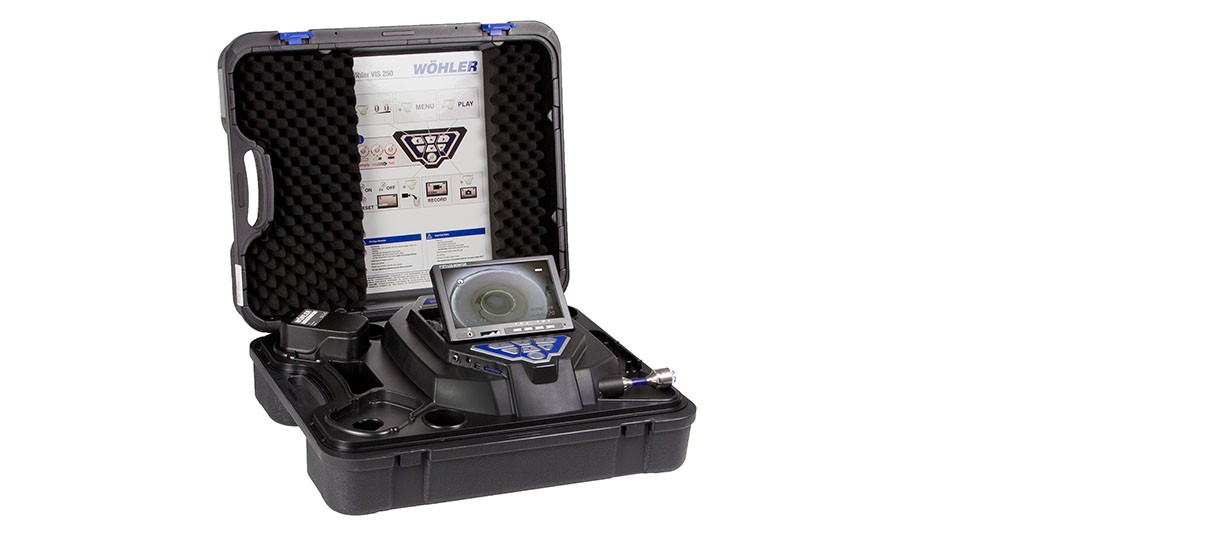

The VIS200 series of push rod camera systems are compact reel system with 1" camera heads.
The Wohler VIS 200 Series of Service Cameras combines state-of-the-art camera technology, cordless operation, compact portability and a rugged durability. This provides the ultimate value package for visual inspection. The VIS200 systems now come with 1 battery with an extended life.
- Ideal for analyzing household waste water pipes of 1 1/2" dia and larger
- Flexible “ the camera easily takes even several bends in stride
- Position of waterproof camera head indicated in the displays
- Integrated locator transmitter precisely locates damage
- Up to 4 hours flexibility “ storage space for 2 NiMH rechargeable batteries
- 100 ft. FRP push rod
- Compact and safely stored for transport and mobility in a plastic case
Typical Applications:
- Waste water pipes of 1 1/2" and larger
- Ventilation lines of 1 1/2" and larger
- Inspect hollow spaces, e.g. in front-wall installations
- Flue gas lines up to approx. 6"
VIS200
The VIS 200 is a 100' portable push rod inspection system without recording. It includes a 1" (25.4mm) diameter waterproof to 100 ft. (30M) 5.5 inch TFT monitor with 6 ft (2M) cable, 2 12V batteries to provide 3 hr. operation, carrying case, video out and charger.
The VIS 200 is a 100' portable push rod inspection system without recording. It includes a 1" (25.4mm) diameter waterproof to 100 ft. (30M) 5.5 inch TFT monitor with 6 ft (2M) cable, 2 12V batteries to provide 3 hr. operation, carrying case, video out and charger.
VIS250
The VIS 250 is a 100 foot portable push rod video inspection system including: 1" (25.4mm) diameter detachable waterproof to 100 ft. (30M) 5.5 inch TFT monitor with 6 ft (2M) cable, 2 12V batteries to provide 3 hr. operation, carrying case, video out, charger,Built-In Recording onto up to 4GB memory card, mini USB port for video transfer, camera keys with record and play functions
The VIS 250 is a 100 foot portable push rod video inspection system including: 1" (25.4mm) diameter detachable waterproof to 100 ft. (30M) 5.5 inch TFT monitor with 6 ft (2M) cable, 2 12V batteries to provide 3 hr. operation, carrying case, video out, charger,Built-In Recording onto up to 4GB memory card, mini USB port for video transfer, camera keys with record and play functions
VIS250+L
The VIS 250 + L200 Locator is a 100 foot portable push rod video inspection system including: 1" (25.4mm) diameter detachable waterproof to 100 ft. (30M) 5.5 inch TFT monitor with 6 ft (2M) cable, 2 12V batteries to provide 3 hr. operation, carrying case, video out, charger,Built-In Recording onto up to 4GB memory card, mini USB port for video transfer, camera keys with record and play functions, and the L200 camera locator
The VIS 250 + L200 Locator is a 100 foot portable push rod video inspection system including: 1" (25.4mm) diameter detachable waterproof to 100 ft. (30M) 5.5 inch TFT monitor with 6 ft (2M) cable, 2 12V batteries to provide 3 hr. operation, carrying case, video out, charger,Built-In Recording onto up to 4GB memory card, mini USB port for video transfer, camera keys with record and play functions, and the L200 camera locator
Dimensions housing: 7" x 4.5" x 1.3"
TFT-display: 7" / 16:9 format
Video out: FBAS signal
Weight: 1 lbs
Power supply
Space for 2 rechargeable batteries, each 12 V or via power pack
Battery operating time
Max. 2 rechargeable batteries, each 120 mins. = 4 h (battery status in display)
Miniature camera head, color 1" mm
Type 1/3" COLOR CMOS
Resolution 420 lines
Pixels 768 x 576 (PAL), 656 x 492 (NTSC)
Light sensitivity: 0.5 Lux
Lens: f = 0.09", F = 2.5
Viewing angle: 115 °
Light source: 12 white LEDs
Degree of protection: Waterproof to IP 68
Dimensions: 1" x 1.5"
Weight: 0.5 lbs
Operation temperature: 32...104 °F, RH 95 % MAX
Storage temperature: -4...122 °F, RH 95 % MAX
Transmitter frequency: 8.9 kHz
Push rod
Length 100 ft.
Diameter 0.24"
Distance measurement
electronic meter counter
Plastic case
Dimensions: 20" x 17" x 7" (l x w x h)
Weight: 15 lbs
Locator receiver
Display: Graphic visualization of transmitted position
Output: impedance
Headphones: 32 Ohm
Power supply: 3.7 V Li-Ion rechargeable battery
Operating temperature: 32...104 °F
Storage temperature: 14...104 °F
Weight: 1.3 lbs
Dimensions: 13" x 6" x 3" (l x w x h)
Memory (Wohler VIS 250)
Recording: 2 GB SD card (2.5 h recording capacity)
Interface: Mini USB port
L200 Locator Specifications
Display: Graphic visualization of transmitted position
Output: impedance
Headphones: 32 Ohm
Power supply: 3.7 V Li-Ion rechargeable battery
Operating temperature: 32...104 °F
Storage temperature: 14...104 °F
Weight: 1.3 lbs
Dimensions: 13" x 6" x 3" (l x w x h)
Accessories
The following accessories are available for the VIS2xx
Car Charger
Wohler VIS 2xx / 3xx, 18V
Wohler VIS 2xx / 3xx, 18V
Power Supply
for Wohler VIS 3xx / VIS 2xx
18V, 1.5A, 100-240V, 50 Hz, charge time 3 hours, for all countries
for Wohler VIS 3xx / VIS 2xx
18V, 1.5A, 100-240V, 50 Hz, charge time 3 hours, for all countries
Sunshade for Wohler VIS 2xx and VIS 3xx
for 7" TFT monitor
for 7" TFT monitor
Wohler Battery 12 V NiMh 2600 mAh
VIS 2xx / VIS 3xx
operation time: 120 min warranty: 12 months
VIS 2xx / VIS 3xx
operation time: 120 min warranty: 12 months
Wohler Camera Roller Guide
for pan and tiltable camera head 1.5"
for pan and tiltable camera head 1.5"
Wohler Guidance Ball
for flex part of camera push rod
for flex part of camera push rod
Wohler Guidance Sleeve
for 1" camera head
for 1" camera head
Wohler Guidance Sleeve
with protection cage for 1" camera head
with protection cage for 1" camera head
Wohler VIS Centering Brush
for Wohler VIS 400 / VIS 2xx / VIS 3xx
for Wohler VIS 400 / VIS 2xx / VIS 3xx
Whler VIS Centering Star
for Whler VIS 2xx / 3xx
8" diameter with 6 brushes, with thread, centers the GRP camera rod, to guide the camera head
for Whler VIS 2xx / 3xx
8" diameter with 6 brushes, with thread, centers the GRP camera rod, to guide the camera head
Wohler VIS Guidance Set 70
for 1" camera head
guidance sleeve with protection cage and centering star
for 1" camera head
guidance sleeve with protection cage and centering star
Wohler L 200 Locator (Receiver)
- Wohler L 200 Locator Receiver - plastic case - USB power supply with micro USB cable - grease crayon (12 pcs. box, yellow) - telescopic rod and headphones
- Wohler L 200 Locator Receiver - plastic case - USB power supply with micro USB cable - grease crayon (12 pcs. box, yellow) - telescopic rod and headphones
