BoresEye

BoresEye

Danatronics™ most versatile video line, the BoresEye works with, flexibile, articulating and push rod camera assemblies starting as small as 3.9mm.

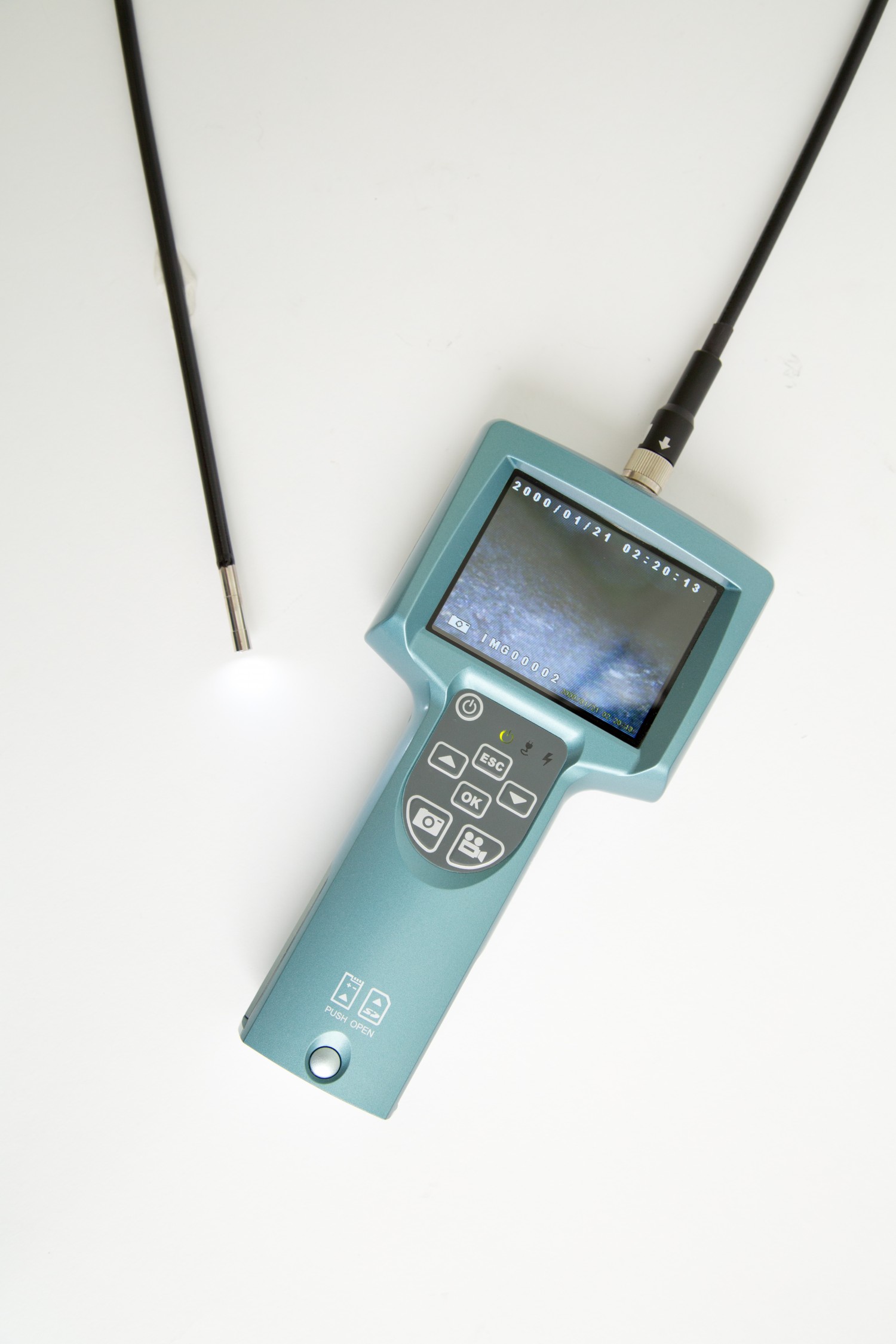

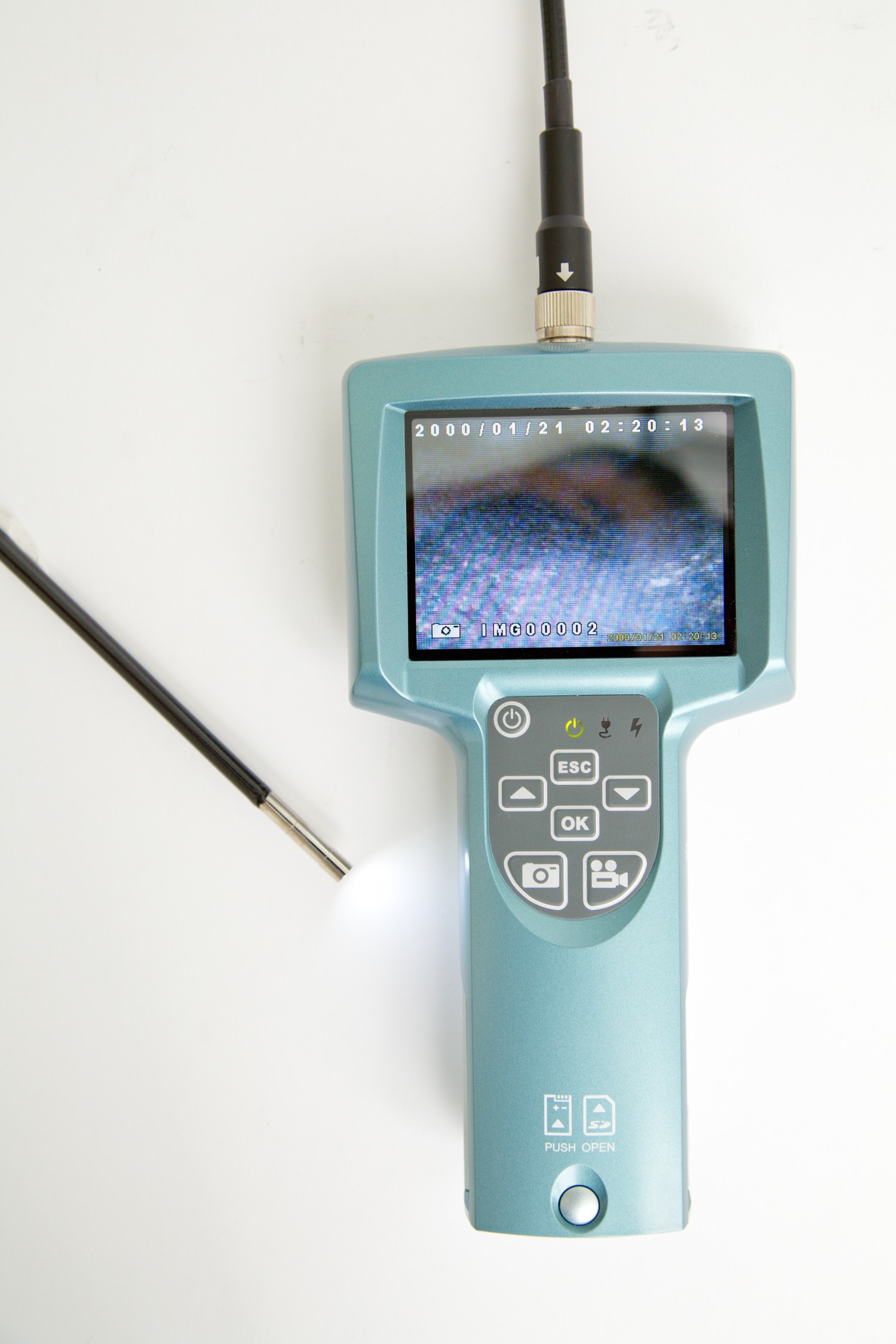

 The Danatronics™ BoresEye series is the ideal cost effective video inspection system. The BoresEye2030 line offers an interchangeable system that allows you to go from a 5.5mm 6M straight camera, to a 3.9mm articulating camera or a push rod camera system, with the twist of a cable making it a truly economical system. It’s counterpart, the BoresEye2040 uses robust and time tested accessories with its standard 1.19” camera head.
REQUEST A QUOTE
Features:
  • 3.5" LCD Display
  • Available in 2 way articulation up to 3M
  • Supports Video Recording (MPEG4) and snapshots/stills (JPEG)
  • Includes a 1 GB SD card for storing video and images and editing on a PC
  • With 16 operation languages software
  • Support AV out (PAL/NTSC selectable)

Typical Applications:
  • Jet Engine Inspection (on or off-wing)
  • Airframes
  • Heat Exchangers
  • Boiler Tubes
  • Underwater
  • Law Enforcement/Military
REQUEST A QUOTE

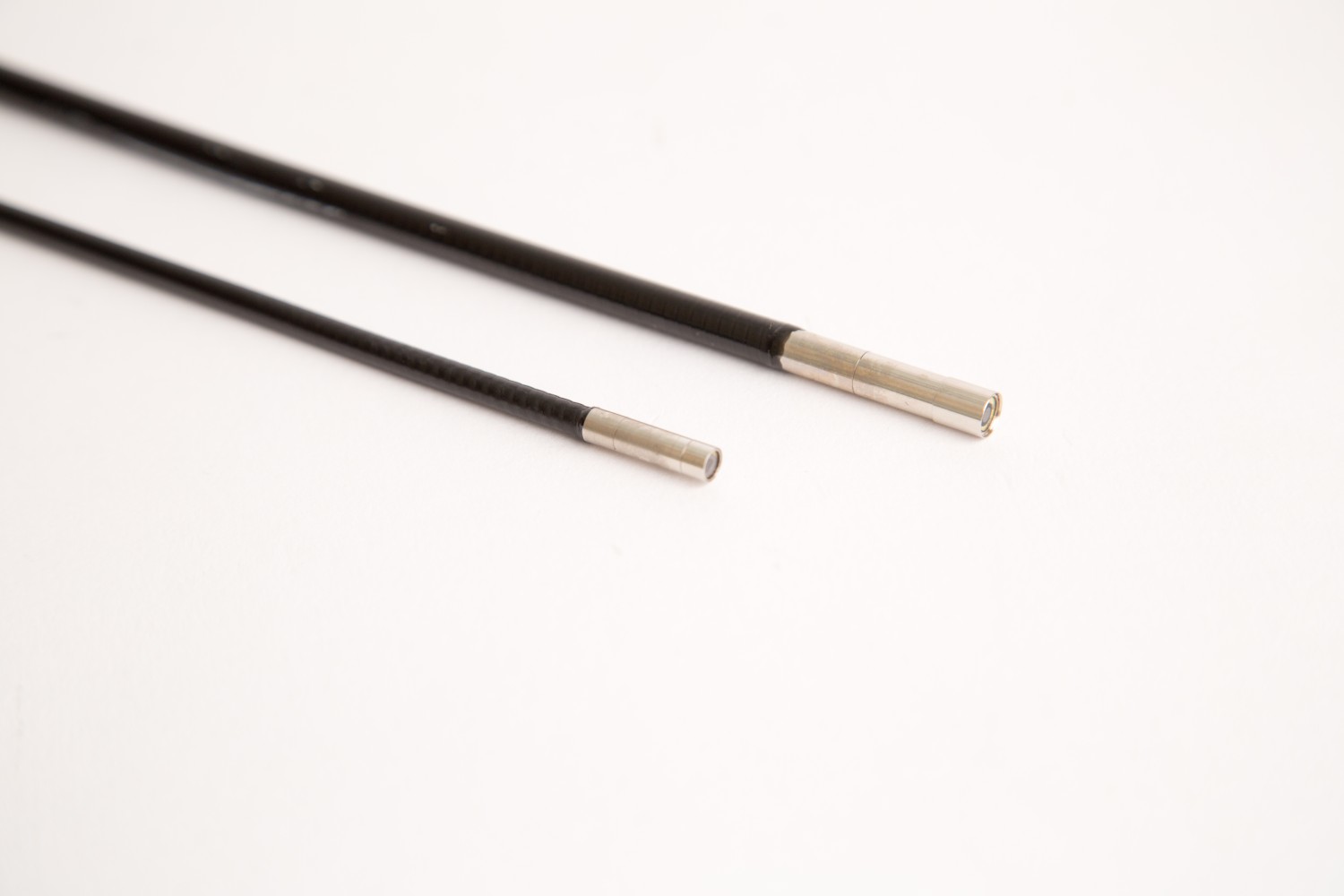

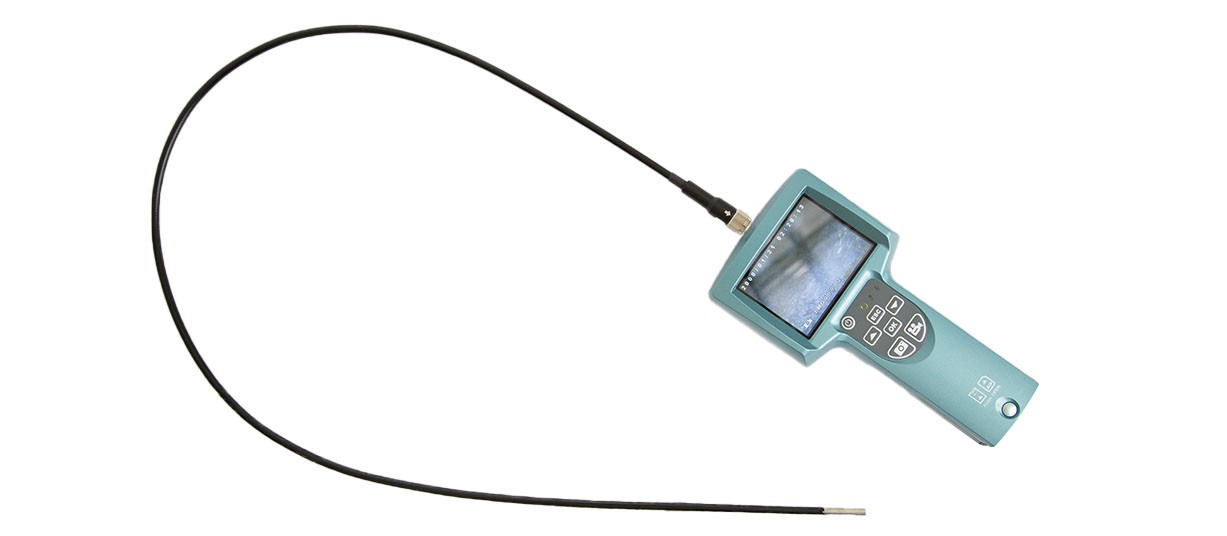

 The Boreseye2030 is designed for use with small-diameter interchangeable articulating and non-articulating camera assemblies. Non-articulating cable lengths range from 1M to 30M and are available in flexible, semi-rigid and even a 30M push rod option. 2-way articulating cameras assemblies are available up to 3M in length. Both camera styles are offered in diameters as small as 3.9mm. Due to the interchangeable nature of the BoresEye, displays and camera assemblies are sold separately. Shown right with the push rod camera assembly.



3mm - Flexible Cable
2030-3-1M 1 Meter, 3.9mm BoresEye Camera Assembly
2030-3-2M 2 Meter, 3.9mm BoresEye Camera Assembly
2030-3-3M 3 Meter, 3.9mm BoresEye Camera Assembly


3mm - Semi Rigid Cable
2030-3-1MSR 1 Meter, 3.9mm BoresEye Camera Assembly
2030-3-2MSR 2 Meter, 3.9mm BoresEye Camera Assembly
2030-3-3MSR 3 Meter, 3.9mm BoresEye Camera Assembly
3mm - Semi Rigid Cable


4mm - Flexible
2030-4-1M 1 Meter, 4.3mm BoresEye Camera Assembly
2030-4-2M 2 Meter, 4.3mm BoresEye Camera Assembly
2030-4-3M 3 Meter, 4.3mm BoresEye Camera Assembly
4mm - Flexible


4mm - Semi Rigid
2030-4-1MSR 1 Meter, 3.9mm BoresEye Camera Assembly
2030-4-2MSR 2 Meter, 3.9mm BoresEye Camera Assembly
2030-4-3MSR 3 Meter, 3.9mm BoresEye Camera Assembly
4mm - Semi Rigid


5mm - Flexible
2030-5-1M 1 Meter, 5.5mm BoresEye Camera Assembly
2030-5-2M 2 Meter, 5.5mm BoresEys Camera Assembly
2030-5-3M 3 Meter, 5.5mm BoresEye Camera Assembly
2030-5-5M 5 Meter, 5.5mm BoresEye Camera Assembly
2030-5-10M 10 Meter, 5.5mm BoresEye Camera Assembly
2030-5-20M 20 Meter, 5.5mm BoresEye Camera Assembly
2010-30M 30 Meter, 5.5mm BoresEye Camera Assembly
5mm - Flexible


5mm - Semi Rigid
2030-5-1MSR 1 Meter, 5.8mm BoresEye Camera Assembly
2030-5-2MSR 2 Meter, 5.8mm BoresEys Camera Assembly
2030-5-3MSR 3 Meter, 5.8mm BoresEye Camera Assembly
2030-5-5MSR 5 Meter, 5.8mm BoresEye Camera Assembly
5mm - Semi Rigid


8mm - Flexible
2030-8-1M 1 Meter, 8.0mm BoresEye Camera Assembly
2030-8-2M 2 Meter, 8.0mm BoresEye Camera Assembly
2030-8-3M 3 Meter, 8.0mm BoresEye Camera Assembly
8mm - Flexible


8mm - Semi Rigid
2030-8-1MSR 1 Meter, 8.0mm BoresEye Camera Assembly
2030-8-2MSR 2 Meter, 8.0mm BoresEye Camera Assembly
2030-8-3MSR 3 Meter, 8.0mm BoresEye Camera Assembly
8mm - Semi Rigid
REQUEST A QUOTE


Display Unit
Power: DC 5V

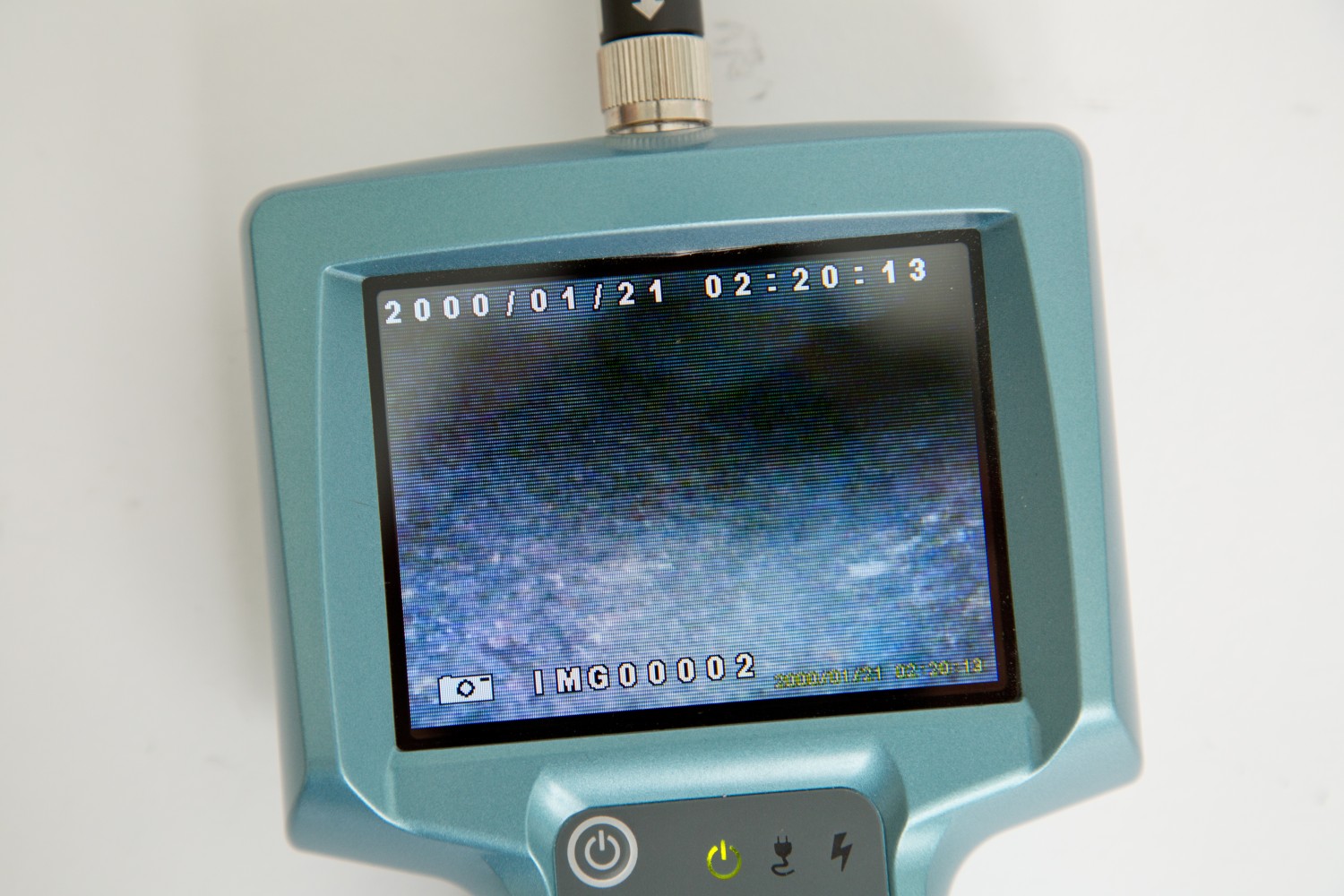

Display: 3.5" TFT LCD Monitor
Interface: USB (1.1/2.0)
AV out: (PAL/NTSC selectable)
Battery: Rechargeable Li-ion Battery
Power Charger: 100~240V AC in / 5.5V DC out

Insertion Tube and Light Source
Resolution (Dynamic Static): VGA resolution provides real 640x480
Waterproof: Cameras are waterproof and available with 35, 45 and 55 degree mirrors.
Camera length and diameter:
      3.9mm straight camera assembly available, interchangeable from 1-10M
      5.5mm straight camera assembly available, interchangeable from 1-30M
      4.3mm straight camera assembly diameter available, interchangeable from 1-10M
 Accessories: Available with 35, 45 and 55 degree mirrors and a magnet
Camera Cable Length: from 1 meter to 30 meters,
Field of View (FOV): 67º
Depth of View (DOV) 1.0 cm to infinity
Light Source: 4 LED (OD 5.5mm)
Probe Working Temperature: -20º to 60º C
Ingress Protection: IP 57 (OD 5.5mm)
REQUEST A QUOTE

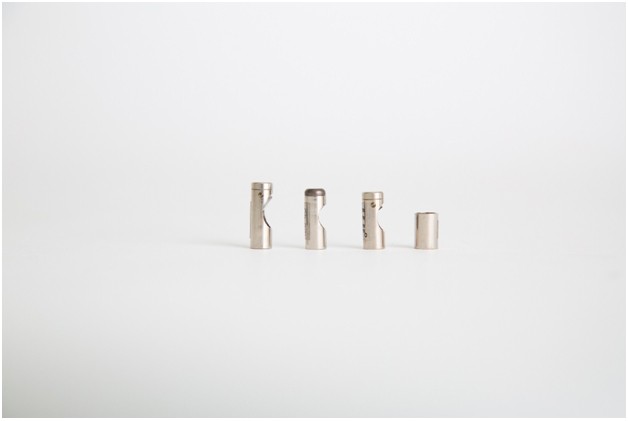

Mirrors and Magnet
Screw on accessories for 5.5mm cameras include mirrors (available in 35, 45 and 55 degrees) as well a magnet.
Mirrors and Magnet
