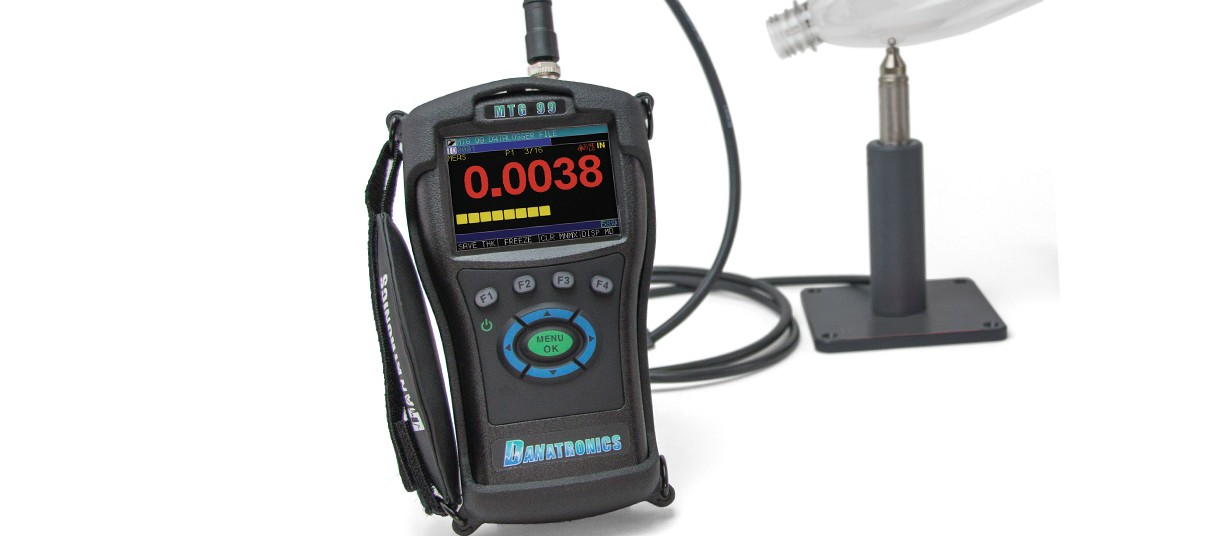

The MTG-99 series is simple to use to non-destructively measure the thickness of any non-ferrous material up to 1” with access to both sides. Our flagship MTG-99 model is portable, battery operated, can change color and vibrate on alarm, has an internal datalogger (optional) and is proudly made in the USA. Typical applications include plastic bottles, containers, tubing, Titanium, Aluminum and Copper tubes and pipes as well as composite structures.

Our new MTG-99B, is an affordable model without an internal datalogger. The MTG-99B Still has the ability to send readings to PC and SPC programs via Bluetooth, RS232 or a footswitch all of which are optional low cost add ons.

REQUEST A QUOTE
Features:

Multiple languages
Datalogger interfaces with Microsoft Excel
Designed for IP67
Made in the USA

Typical Applications:

Plastic bottles and containers
Tubing
Titanium
Aluminum
Copper
Composite Structures

REQUEST A QUOTE
The MTG 99 series is available in 4 models

MTG-99B
Non Datalogger Magnetic Thickness Gage including: PR-1 probe, 4ft coiled cable (CC-04), Standard calibration kit (MTG-CK-STD), 2 piece probe stand (MTG-2PS), Rubber booth (ECHO-RB) with Heavy Duty Bail (ECHO-HDB), charger adapter with USB cable (ECHO-CA), rechargeable lithium-ion battery (ECHO-LBP), and plastic carrying case (MTG-PCC)

MTG-99B-ER
Non Datalogger Magnetic Thickness Gage with Extended Range kit including: PR-1 probe, 4ft coiled cable (CC-04), extended range calibration kit (MTG-CK-ER), 2 piece probe stand (MTG-2PS), Rubber booth (ECHO-RB) with Heavy Duty Bail (ECHO-HDB), charger adapter with USB cable (ECHO-CA), rechargeable lithium-ion battery (ECHO-LBP), and plastic carrying case (MTG-PCC)

MTG-99
Magnetic Thickness Gage including: PR-1 probe, 4ft coiled cable (CC-04), Standard calibration kit (MTG-CK-STD), 2 piece probe stand (MTG-2PS), Rubber booth (ECHO-RB) with Heavy Duty Bail (ECHO-HDB), charger adapter with USB cable (ECHO-CA), rechargeable lithium-ion battery (ECHO-LBP), Data XL interface program to export saved readings to p.c. (Microsoft Excel), and plastic carrying case (MTG-PCC)

MTG-99ER
Magnetic Thickness Gage Extended Range kit including: PR-1 probe, 4ft coiled cable (CC-04), extended range calibration kit (MTG-CK-ER), 2 piece probe stand (MTG-2PS), Rubber booth (ECHO-RB) with Heavy Duty Bail (ECHO-HDB), charger adapter with USB cable (ECHO-CA), rechargeable lithium-ion battery (ECHO-LBP), Data XL interface program to export saved readings to p.c. (Microsoft Excel),and plastic carrying case (MTG-PCC)

REQUEST A QUOTE
MTG-99 Specifications

Overall Dimension: 7.25" L x 4.00" W x-2.00" H (184mm x 101.6mm x 50.8mm)

Weight: 1.15 lbs (.52 kg) with internal Li-Ion battery

Operation temperature: -4 to 122F (-20 to 50C)

Keypad: Illuminating rubber keypad

Languages: English, French, German, Spanish, Italian, Russian, Czech, Finnish, Chinese, Japanese, Hungarian

Data Storage: Onboard & removable up to 32 GB MicroSD card

Battery Life: 16 h (lithium-ion) (TBD) AC

Power Requirements: AC Mains: 100 VAC to120 VAC, 200 VAC to 240 VAC

Display Type: 3.5" high resolution color TFT display, 320 x 240 pixels (1/4 VGA), sunlight readable, including multiple color pallets

Backlight: Light Emitting Diode (LED) backlight. Includes variable light intensity.

Display Dimensions: (W x H, Diag.) 2.76 in. x 2.07 in., 3.5 in. (70.08 mm x 52.56 mm, 88.9 mm)

Min/Max Capture Mode: Captured at 60 Hz measurement rate Display

Formats: 4 modes; Thickness only, Thickness with 3 additional customizable choices, Thickness and Strip chart, Grid View

Display Update Rate: 4, 8, 16 and 20 Hz

Alarm: High and Low alarms with vibrate feature

Thickness Range: 0.0001"-1.00" (0.001-25.4 mm) of any non-ferrous material with access to both sides

Resolution: 0.01 in. (0.1 mm), 0.001 in. (0.01 mm), 0.0001 in. (0.001 mm), (depending on thickness range)

Data Logger: Internal file-based alphanumeric data logger

Memory Card: Maximum capacity: 32 GB removable MicroSD memory card

Shutoff: selectable 1-31 minutes or "Never" shut off

Inputs/Outputs: USB 2.0 peripheral, port RS-232 (Optional), Bluetooth (optional): Send and receive readings and files via Bluetooth

Environmental Testing: Designed for IP67

Warranty: Limited 2 year warranty under normal use on parts and labor for gage, 90 days for the probe. The probe should not be dropped or used around ferrous materials such as iron, steel, doing so will void the warranty

REQUEST A QUOTE

Bluetooth
Available as an optional upgrade for MTG-99 gages. The bluetooth software option requires internal hardware modification on the PCB (does not affect other specs, IP rating or require additional power source).

Allows MTG-99 gages to export data such as thickness readings or files to another device via internal bluetooth. DataXL mobile can be used to facilitate the transfer of information on IOS and Andriod phones and tablets. DataXL Mobile is coming soon in the Apple store and Google Play Store.

REQUEST A QUOTE
The following accessories are available for the MTG-99

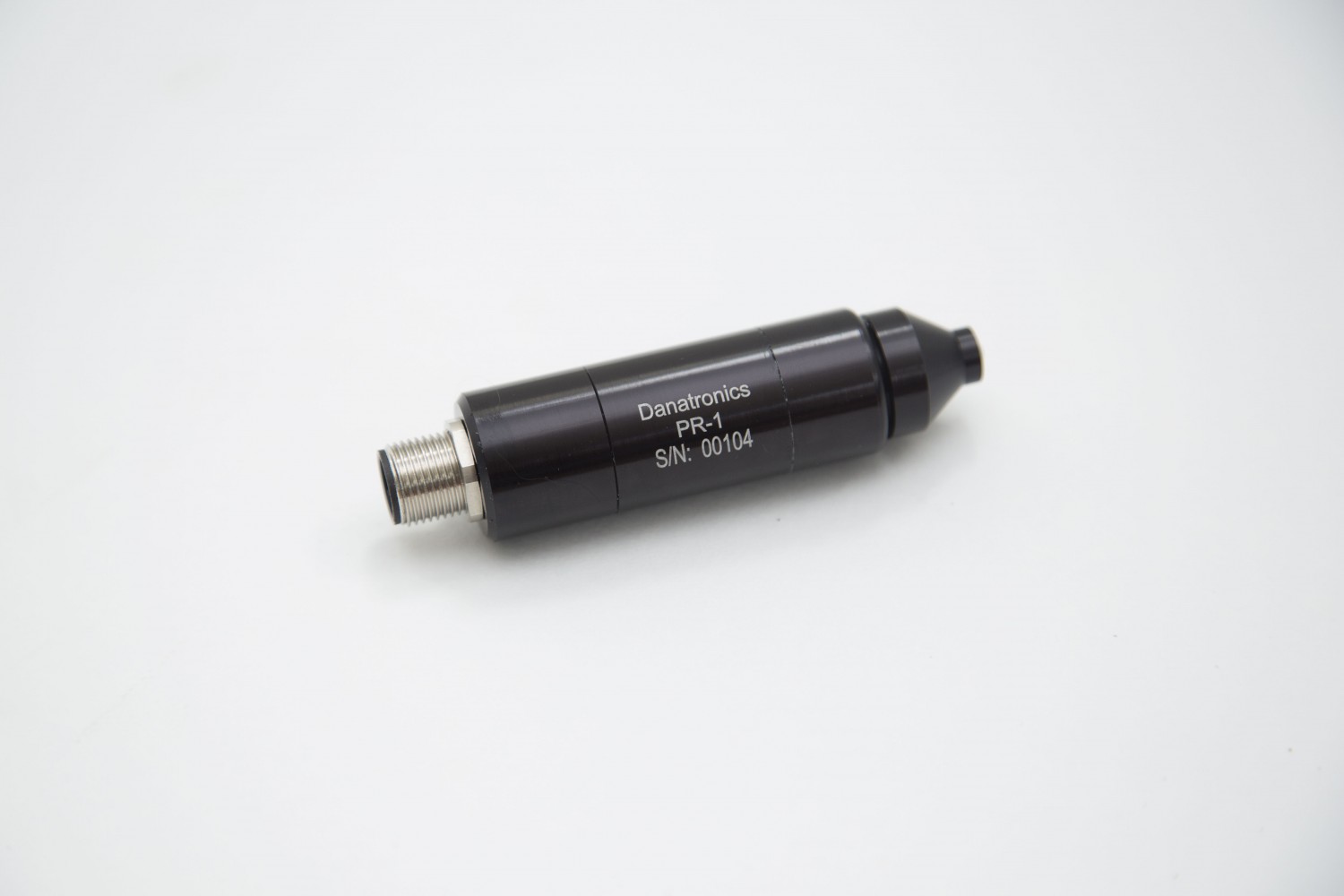

PR-1 Probe

Rubber boot
We offer a custom protective rubber boot with built in bail, 4 point chest harness and unique 2 finger hold strap.

Heavy Duty Bail
Heavy Duty bail for use with rubber boot

Batteries
Standard 3.7 V Li Ion internally rechargeable battery comes standard

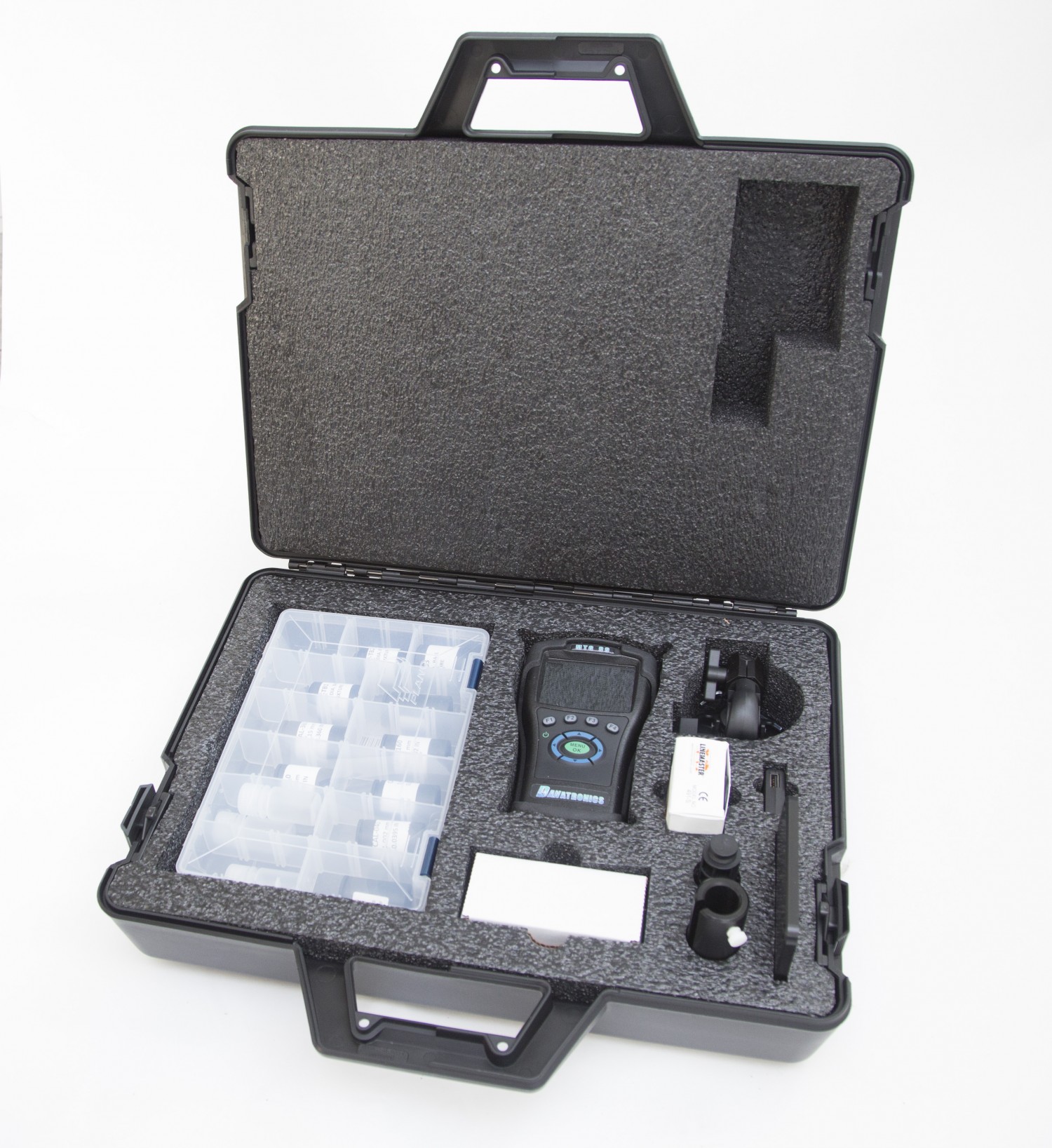

ECHO Transport Case
The ECHO Transport Case is shown with common inclusions. (Spare batteries and 5 step test block sold separately).

Cables
Dual and single cables offered in 6 feet or other lengths upon special order. Shown left to right: DLM-06, DLM-06ACMP, LM-06

AC Power
ECHO 9 series comes with a convenient AC charger via the USB port so you do not have to replace the batteries on a regular basis.

Footswitch
With this hardware option the operator can use a footswitch to save, freeze or send readings.

Suction Cup Stand
MTG-SC Suction Cup Stand for MTG-99 using 1/4, 20

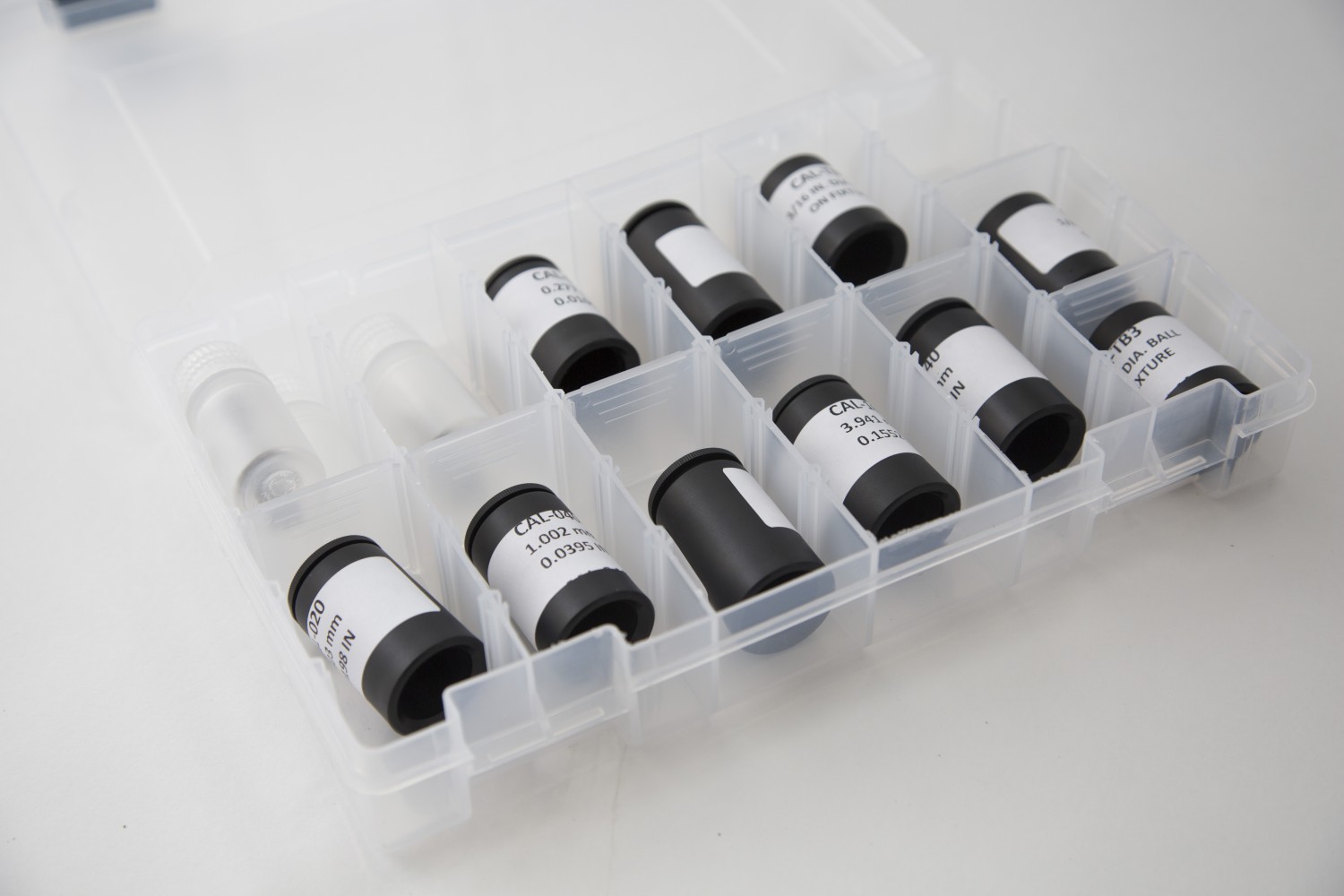

Standard Calibration Kit
Standard Calibration Kit includes 3 ball on calibration fixtures with shims for 1/16", 3/16" and 1/8", 7 reference thickness discs in calibration fixtures in 0.010”, 0.020”, 0.040”, 0.080”, 0.160”, 0.240”, 0.360” and 3 target ball sizes 1/16" (200qty), 1/8" (300 qty), and 3/16" (75 qty)
