SnakeEye
The SnakeEye III is the ideal solution for wet environments as not only is the camera head waterproof, the display is as well.
The SnakeEye is a low-cost hand held remote video inspection system. Lightweight, modular and portable, the SnakeEye "lets your eyes travel where you can't." Combining a CCD camera and TFT-LCD display technology, the SnakeEye delivers crystal-clear, full color video at a fraction of the price of current remote video inspection systems.
- 5 in (12.7cm) Color VGA LCD
- LED Camera
- Rigid Wand Adapter
- Finger Adapter
- 4 ft(1.2m) Cable
- NiMH Batteries (2)
- Battery Charger
- AC Adapter
- DC Auto Adapter
- Carrying Case
- IP68 Kit
Typical Applications:
- Industrial
- Aviation
- Vehicles
- Buildings
- Public Safety
- Search and rescue

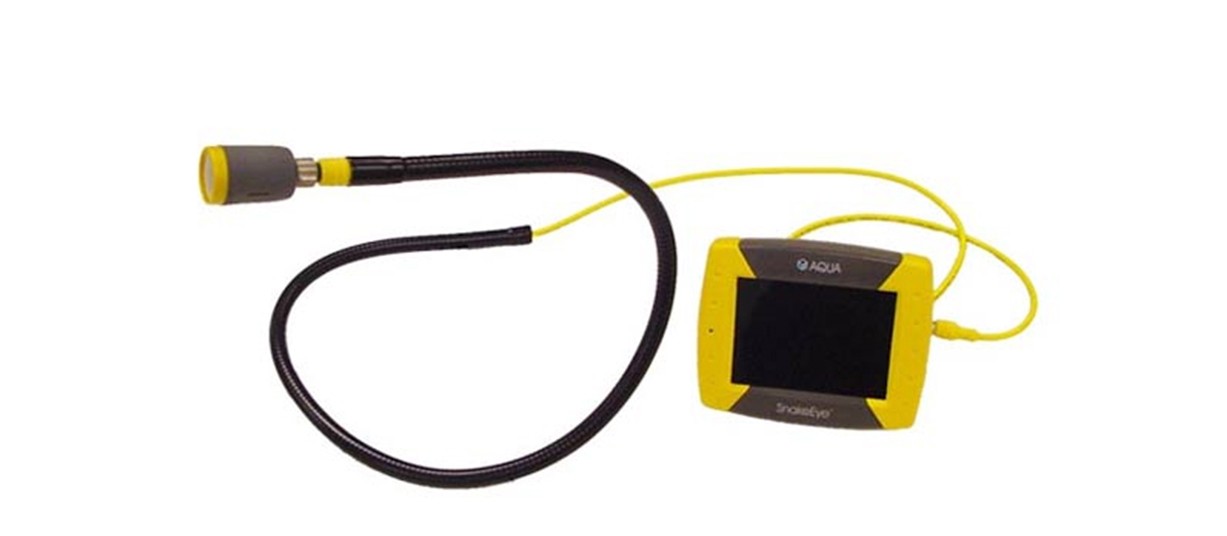

SnakeEye II
Video inspection unit including Display Unit (no recording), CCD Camera, 4' cable (1.2m), Articulating wand, Finger Adapter, Battery Pack (2), Battery Charger, AC Adapter (specify voltage: 100V, 120V, or 240V), DC Adapter, Carrying Case, Instruction Manual
Video inspection unit including Display Unit (no recording), CCD Camera, 4' cable (1.2m), Articulating wand, Finger Adapter, Battery Pack (2), Battery Charger, AC Adapter (specify voltage: 100V, 120V, or 240V), DC Adapter, Carrying Case, Instruction Manual

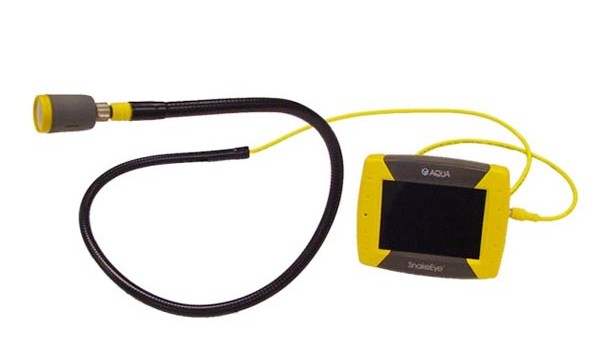

SnakeEye III
Video inspection unit including Display Unit (includes ability to record), CCD Camera, 4' cable (1.2m), Articulating wand, Finger Adapter, Battery Pack (2), Battery Charger, AC Adapter (specify voltage: 100V, 120V, or 240V), DC Adapter, Carrying Case, Instruction Manual
Video inspection unit including Display Unit (includes ability to record), CCD Camera, 4' cable (1.2m), Articulating wand, Finger Adapter, Battery Pack (2), Battery Charger, AC Adapter (specify voltage: 100V, 120V, or 240V), DC Adapter, Carrying Case, Instruction Manual
General
Total system weight- less than 3 lbs (1.4 kg)
- Power requirements:
- AC Nominal input: 100-240V
- DC nominal input: 12V
- System operating temperature:14 degrees F to 140 degrees F (-1O degrees C to 60 degrees C)
- Video input/output: NTSC
- 5 in (12.7 cm) Color Display
- LED Camera
- Rigid Wand Adapter
- Finger Adapter
- 4' (1.2 m) Cable
- NiMH Batteries (2)
- Battery Charger
- AC Adapter
- DC Auto Adapter
- Carrying Case
- 5 in (12.7 cm) color TFT-LCD
- 960 (320 RGB) x 234 color pixels
- Rotating Display
- Adjustable hand strap
- Three level camera light control low-med-high-off
- External power port
- RCA port for Video I/O
- Water resistant
Display Unit: SnakeEye III
- 5 in (12.7 cm) color VGA TFT-LCD
- 640 x 480 color pixels
- Adjustable hand strap
- Three level camera light control low-med-high-off
- Video and Still Image Recording
- Voice Note Recording
- Three Screen Image Control: Normal - Mirror - 180 Degree Roatation
- External power port
- RCA port for Video I/O
- IP68 Compliant
- waterproof up to 10 feet in depth

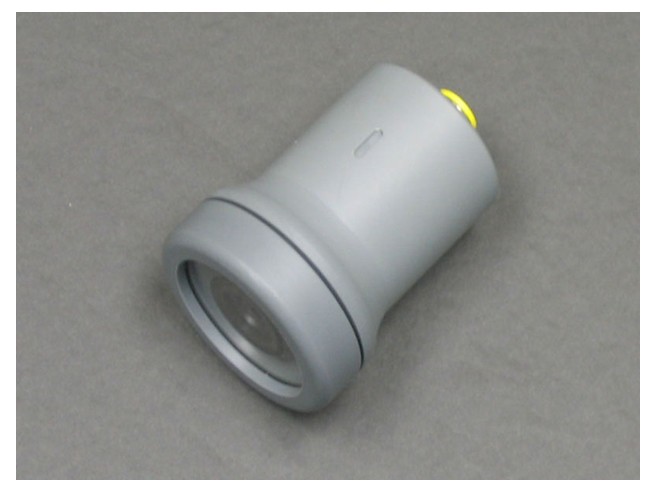

- CCD camera
- 1.1 in (2.79 cm) diameter
- 1.92 in (4.8 cm) long
- Sensitivity = 2 lux @ F3.5
- CCD total pixels 771 x 492
- Field of view 45 degrees
- Depth of field 1.5 in (3.8 cm) to infinity
- 4 White light LEDs; 3 levels of brightness
- Water proof to 30ft (10m)
- Up to 60 min continuous operation
- 2 x 6V NiMH rechargeable batteries
- Battery charger
- AC/DC adapter
- 12 V auto adapter
- 18 in (45.7 cm) length
- 90 degree one way articulation
- Sure-grip handle
C-Mount Camera
For use when connecting the SnakeEye display to a fiberscope system.
For use when connecting the SnakeEye display to a fiberscope system.
3 ft (91 cm) gooseneck adapter
Provides rigidity to the cable for more precise inspections
Provides rigidity to the cable for more precise inspections
Extension Cables
Comprised of heavy duty, plastic coated cable designed for use in harsh enviroments. They are available in 30’ and 100’ lengths
Comprised of heavy duty, plastic coated cable designed for use in harsh enviroments. They are available in 30’ and 100’ lengths

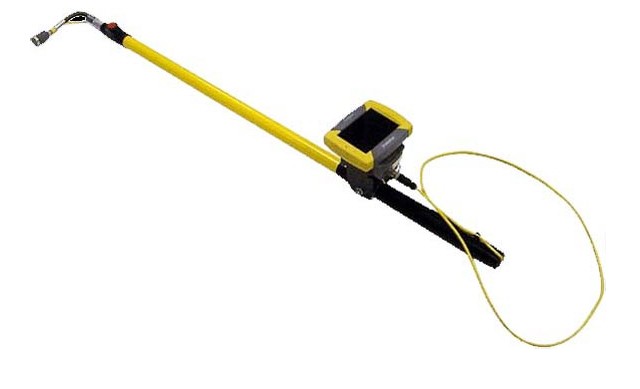

Telescoping poles (2-4 ft, 4-7 ft, 6-11 ft, 8-12 ft)
SnakeEye telescoping poles allow for inspection of hard to reach areas.
SnakeEye telescoping poles allow for inspection of hard to reach areas.

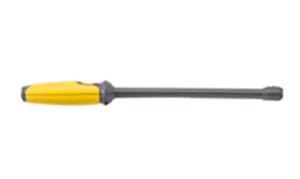

Rigid Wand Adapter
The rigid wand adapter is 18” long and contains a suregrip handle as well as a swivel features that allows the user to vertically articulate the camera up to 90°. Also available in a 23ft (7m) version.
The rigid wand adapter is 18” long and contains a suregrip handle as well as a swivel features that allows the user to vertically articulate the camera up to 90°. Also available in a 23ft (7m) version.

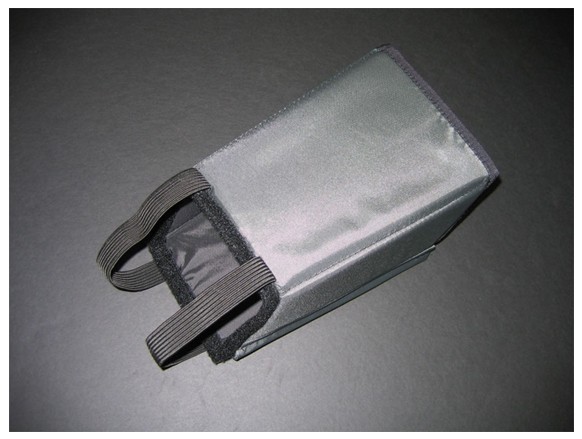

Sun shield
Used to reduce glare when the unit is in use outside.
Used to reduce glare when the unit is in use outside.

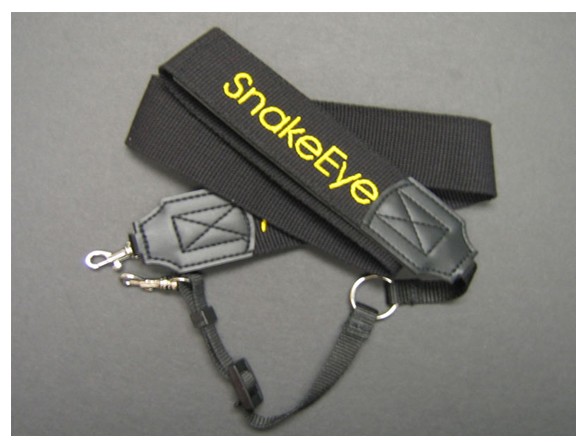

Neck strap
For easy wearability of the display
For easy wearability of the display
SnakeEye Mirror
45 degree mirror also available in a dual view version that allows the user to see both the side view and straight view at the same time.
45 degree mirror also available in a dual view version that allows the user to see both the side view and straight view at the same time.
