Corrosion Thickness Gages
REQUEST A QUOTE
Features:
Typical Applications: REQUEST A QUOTE
The EHC-09 Color Wave series is available in 4 models to suit your every budget and application.
REQUEST A QUOTE
Size: 5" (127mm)(L) x 3"(76.2 mm)(W) x 1.25" (31.75 mm)(H)
Weight: 8 OZ (.23 kg)
Thickness range: 0.020 - 20 inches (.50 mm - 508 mm) in steel, depending on material, temperature and transducer selection
Material Velocity Calibration Range: 0.0200 - 0.7362 in/uS (0.508 - 18.699 mm/uS)
Temperature: Gage Operating: -4° F to 122° F (-20° C to 50° C) High temperature transducers available for material temperatures from -5° F to 950° F (-20° C to 510° C)
Battery life: 8 -14 hours (depends on operating conditions)
Battery type: 2 "AA" Alkaline
Color Display: 170 X 220 pixels, high resolution TFT color display, sunlight readable
Language support: multi language of English, French, Spanish, Italian,Czech, German, Portuguese, Slovak, Finnish, and Hungarian
Information displays: Loss of signal (LOS), min, max, large reading while displaying min at the same time, velocity, zero, calibration, units, freeze, unfreeze, % battery life remaining, gain - low, std, high, echo to echo symbol
Resolution: .001" (.01 mm), .01” (.1 mm)
Probe Recognition: Via pick list from a menu
Delay line zero measurement: Auto at power up with listed numeric value. Ideal for correcting delay line wear/curvature and for transducer acoustic drift at elevated temperatures
Package: IP54 Rated, Custom, splash-proof, high impact plastic with illuminating rubber keypad for go/no-go testing
Bandwidth: 0.5-20 MHz (-3dB)
Units: English/Metric/Microseconds
Gain: Low, Standard and High for varying test conditions (for gages without a waveform) or 1 dB steps from 20-90 dB or Automatic Gain Control (AGC) for gages with a waveform
Differential Mode: Displays the difference from the actual thickness measurement in absolute or percentage of a user entered reference value
Alarms: Minimum/Maximum depth, vibrates, beeps and display flashes as well as keypad illumination
Illuminating keypad: F1 = Red, F2 = Yellow and F3 = Green for easy, go/no-go testing
Ergonomics: User selectable lefty or rightly display changes via keypad
Backlight: Light Emitting Diode (LED), On/Off or Auto On based on valid readings or last key press
Shut off: Auto, user programmable time out (1-31 minutes), after no reading/key press or never shut off
Protective Pouch: Custom molded pouch with belt clip and wrist strap for either lefty or righty operators (optional, standard with DLC and DLCW).
Transport case: Hard Plastic with high density molded foam cut out for gage and most accessories
Freeze mode: Freezes display (ideal for high temperature applications)
Hold mode: Holds display to retain last thickness reading
Standard Inclusions: Ultrasonic thickness gage, DKS-537, 5 MHz 0.375 inch diameter potted cable, Data XL interface program, couplant, and transport case. See chart below for standard inclusions for each gage
Warranty: Limited 2 year warranty on parts and labor for gage only under normal use
Transducers: A wide variety of dual transducers from 1-10 mhz, high temperature duals, delay lines and pencil probes REQUEST A QUOTE
EHC-09 Software Options are easy and convenient to upgrade in the field. Danatronics gage upgrades are done directly from your gage's keypad and do not require the use of a computer.
The following are available upgrades for the EHC-09 Color Wave Series
REQUEST A QUOTE
REQUEST A QUOTE
Danatronics offers a wide variety of dual transducers from .5-10 Mhz , high temperature duals and delay lines including pencil probes (12 Mhz.) for special applications. Consult Danatronics or one of our authorized representatives for the proper use and recommendation for your application.
For complete list including specifications please see our transducer chart
EHC-09 Color
Danatronics EHC-09 Color series comes in 4 models ranging from our EHC-09C to the fully loaded EHC-09DLCW that includes Echo to Echo, B-Scan, a 100k reading datalogger and a live Waveform (A-Scan)
Danatronics offers our EHC-09 Color Wave series as the top of the line gages for corrosion applications. The EHC-09 Color Wave offers many standard and practical features including a sunlight readable color display with live A-Scan, echo to echo to ignore coatings, B-Scan, 100K thickness reading datalogger with interface to Microsoft excel. The Color Wave is available in 4 models including the EHC-09C, EHC-09DLC, EHC-09CW and EHC-09DLCW. The vibrate on alarm is a world’s first and is great for loud environments!
- Live Simultaneous Color Waveform and Thickness Display
- Vibration and color change on alarm
- Control of Gain, Blanking, Range, RF and Rectify Modes
- Available in Multiple Models
- Sunlight Readable color display
- IP54 rated
- 100k alphanumeric Datalogger with file compare and export to Microsoft excel
- B-Scan – with optional magnetic wheel encoder
- Made in USA
Typical Applications:
- Boiler Tubes
- Pressure Vessels
- Storage Tanks
- Ship Hulls
- Containers
- Home Oil Tanks
- Pipes
- Steam Lines
- Compressors
- Shafts
The EHC-09 Color Wave series is available in 4 models to suit your every budget and application.
EHC-09C
Hand-Held Digital Ultrasonic thickness gage with Color Display for thickness only including: Echo to Echo Software, Plastic Carrying Case, 2 Oz. bottle of couplant (C-02G), 2 AA batteries, Instruction manual and DKS537 , 5MHz, .375 " diameter Transducer with potted cable, data xl interface program
Hand-Held Digital Ultrasonic thickness gage with Color Display for thickness only including: Echo to Echo Software, Plastic Carrying Case, 2 Oz. bottle of couplant (C-02G), 2 AA batteries, Instruction manual and DKS537 , 5MHz, .375 " diameter Transducer with potted cable, data xl interface program
EHC-09DLC
Includes all the features of the EHC-09C plus 100,000 reading Datalogger with export to excel, B-scan, Protective Pouch and USB cable
Includes all the features of the EHC-09C plus 100,000 reading Datalogger with export to excel, B-scan, Protective Pouch and USB cable
EHC-09CW
Includes all the features of the EHC-09C plus a live color waveform (A-scan). (No Datalogger) with the live waveform, you can adjust range, gain, blanks and rectification.
Includes all the features of the EHC-09C plus a live color waveform (A-scan). (No Datalogger) with the live waveform, you can adjust range, gain, blanks and rectification.
EHC-09DLCW
Combines all the features such as Hand-Held Digital Ultrasonic thickness gage with live Color Waveform, 100,000 thickness readings via internal datalogger including: Plastic Carrying Case (PC-09) , 2 Oz. bottle of couplant (C-02G), 2 AA batteries, DKS537, 5MHz, .375 " diameter Transducer with potted cable, carrying pouch (PP-09), Echo to Echo (EE-09) and B-Scan (BS-09), USB cable USB-09-6 and Data XL interface program to export saved readings to p.c. (excel)
Combines all the features such as Hand-Held Digital Ultrasonic thickness gage with live Color Waveform, 100,000 thickness readings via internal datalogger including: Plastic Carrying Case (PC-09) , 2 Oz. bottle of couplant (C-02G), 2 AA batteries, DKS537, 5MHz, .375 " diameter Transducer with potted cable, carrying pouch (PP-09), Echo to Echo (EE-09) and B-Scan (BS-09), USB cable USB-09-6 and Data XL interface program to export saved readings to p.c. (excel)
Weight: 8 OZ (.23 kg)
Thickness range: 0.020 - 20 inches (.50 mm - 508 mm) in steel, depending on material, temperature and transducer selection
Material Velocity Calibration Range: 0.0200 - 0.7362 in/uS (0.508 - 18.699 mm/uS)
Temperature: Gage Operating: -4° F to 122° F (-20° C to 50° C) High temperature transducers available for material temperatures from -5° F to 950° F (-20° C to 510° C)
Battery life: 8 -14 hours (depends on operating conditions)
Battery type: 2 "AA" Alkaline
Color Display: 170 X 220 pixels, high resolution TFT color display, sunlight readable
Language support: multi language of English, French, Spanish, Italian,Czech, German, Portuguese, Slovak, Finnish, and Hungarian
Information displays: Loss of signal (LOS), min, max, large reading while displaying min at the same time, velocity, zero, calibration, units, freeze, unfreeze, % battery life remaining, gain - low, std, high, echo to echo symbol
Resolution: .001" (.01 mm), .01” (.1 mm)
Probe Recognition: Via pick list from a menu
Delay line zero measurement: Auto at power up with listed numeric value. Ideal for correcting delay line wear/curvature and for transducer acoustic drift at elevated temperatures
Package: IP54 Rated, Custom, splash-proof, high impact plastic with illuminating rubber keypad for go/no-go testing
Bandwidth: 0.5-20 MHz (-3dB)
Units: English/Metric/Microseconds
Gain: Low, Standard and High for varying test conditions (for gages without a waveform) or 1 dB steps from 20-90 dB or Automatic Gain Control (AGC) for gages with a waveform
Differential Mode: Displays the difference from the actual thickness measurement in absolute or percentage of a user entered reference value
Alarms: Minimum/Maximum depth, vibrates, beeps and display flashes as well as keypad illumination
Illuminating keypad: F1 = Red, F2 = Yellow and F3 = Green for easy, go/no-go testing
Ergonomics: User selectable lefty or rightly display changes via keypad
Backlight: Light Emitting Diode (LED), On/Off or Auto On based on valid readings or last key press
Shut off: Auto, user programmable time out (1-31 minutes), after no reading/key press or never shut off
Protective Pouch: Custom molded pouch with belt clip and wrist strap for either lefty or righty operators (optional, standard with DLC and DLCW).
Transport case: Hard Plastic with high density molded foam cut out for gage and most accessories
Freeze mode: Freezes display (ideal for high temperature applications)
Hold mode: Holds display to retain last thickness reading
Standard Inclusions: Ultrasonic thickness gage, DKS-537, 5 MHz 0.375 inch diameter potted cable, Data XL interface program, couplant, and transport case. See chart below for standard inclusions for each gage
Warranty: Limited 2 year warranty on parts and labor for gage only under normal use
Transducers: A wide variety of dual transducers from 1-10 mhz, high temperature duals, delay lines and pencil probes
The following are available upgrades for the EHC-09 Color Wave Series
Echo to Echo to ignore Coatings
Comes Standard with all EHC-09 Color Series gages
This option allows for the coating or paint thickness to be ignored. The coating thickness or paint does not add any structural integrity to the base material. Without the ability to subtract the paint, the normal measurement would introduce an error of 2 to 2.5 times the thickness of the paint, which represents the sound speed difference from Paint to Steel. In addition it is expensive and time consuming to grind out the coating thickness and to re-apply a coating.
Comes Standard with all EHC-09 Color Series gages
This option allows for the coating or paint thickness to be ignored. The coating thickness or paint does not add any structural integrity to the base material. Without the ability to subtract the paint, the normal measurement would introduce an error of 2 to 2.5 times the thickness of the paint, which represents the sound speed difference from Paint to Steel. In addition it is expensive and time consuming to grind out the coating thickness and to re-apply a coating.
B-Scan
Comes standard on the EHC-09DLC and EHC-09DLCW
This option is only available combined with the Datalogger option. Provides a non-encoded (time base) or a cross section (side view) of the part being inspected. The image above shows the side view of a step block. The operator can scroll where the cursor line is after a B-scan is generated to get the thickness value as that point (.100”) shown above.
Comes standard on the EHC-09DLC and EHC-09DLCW
This option is only available combined with the Datalogger option. Provides a non-encoded (time base) or a cross section (side view) of the part being inspected. The image above shows the side view of a step block. The operator can scroll where the cursor line is after a B-scan is generated to get the thickness value as that point (.100”) shown above.
Datalogger
Comes standard with the EHC-09DLC and EHC-09DLCW
The EHC-09 Datalogger stores up to 100,000 readings in its internal Datalogger as linear, 2D, 3D, or boiler in alphanumeric or 2600 waveforms (if gage is equipped with waveform option). Thickness values along with the i.d. information and all gage set up parameters are exported to Microsoft excel via the no-charged, Data XL interface program available on our website. Our Datalogger also interfaces with Ultrapipe.
Comes standard with the EHC-09DLC and EHC-09DLCW
The EHC-09 Datalogger stores up to 100,000 readings in its internal Datalogger as linear, 2D, 3D, or boiler in alphanumeric or 2600 waveforms (if gage is equipped with waveform option). Thickness values along with the i.d. information and all gage set up parameters are exported to Microsoft excel via the no-charged, Data XL interface program available on our website. Our Datalogger also interfaces with Ultrapipe.
Live Waveform
Comes standard with the EHC-09CW and EHC-09DLCW
The live waveform (A-scan) is used to verify reading stability. With the live waveform the operator can adjust gain, range, rectification and 2 forms of blanking to set the gage to ignore unwanted noise or mode converted echoes.
Comes standard with the EHC-09CW and EHC-09DLCW
The live waveform (A-scan) is used to verify reading stability. With the live waveform the operator can adjust gain, range, rectification and 2 forms of blanking to set the gage to ignore unwanted noise or mode converted echoes.
Angle Beam
Sold as a separate software option for our EHC-09DLCW
Displays trig functions for angular distance, surface and depth. Can use 2.25MHz, or 5 Mhz, in angles from 30-80 degrees. NOT TO BE USED AS A FLAW DETECTOR due to limited scan speed and vertical linearity requirements of most flaw detectors.
Sold as a separate software option for our EHC-09DLCW
Displays trig functions for angular distance, surface and depth. Can use 2.25MHz, or 5 Mhz, in angles from 30-80 degrees. NOT TO BE USED AS A FLAW DETECTOR due to limited scan speed and vertical linearity requirements of most flaw detectors.
5 Step Test Block
We offer a 5 step test block, made of carbon steel with nickel plating engraved in both English and Metric values from .100’, .200”, .300”, .400”, .500” or 2.54mm, 5.05mm, 7.5mm, 10.0mm, 12.7mm (No certification is provided with these blocks but can be provide on special order for an additional fee)
We offer a 5 step test block, made of carbon steel with nickel plating engraved in both English and Metric values from .100’, .200”, .300”, .400”, .500” or 2.54mm, 5.05mm, 7.5mm, 10.0mm, 12.7mm (No certification is provided with these blocks but can be provide on special order for an additional fee)

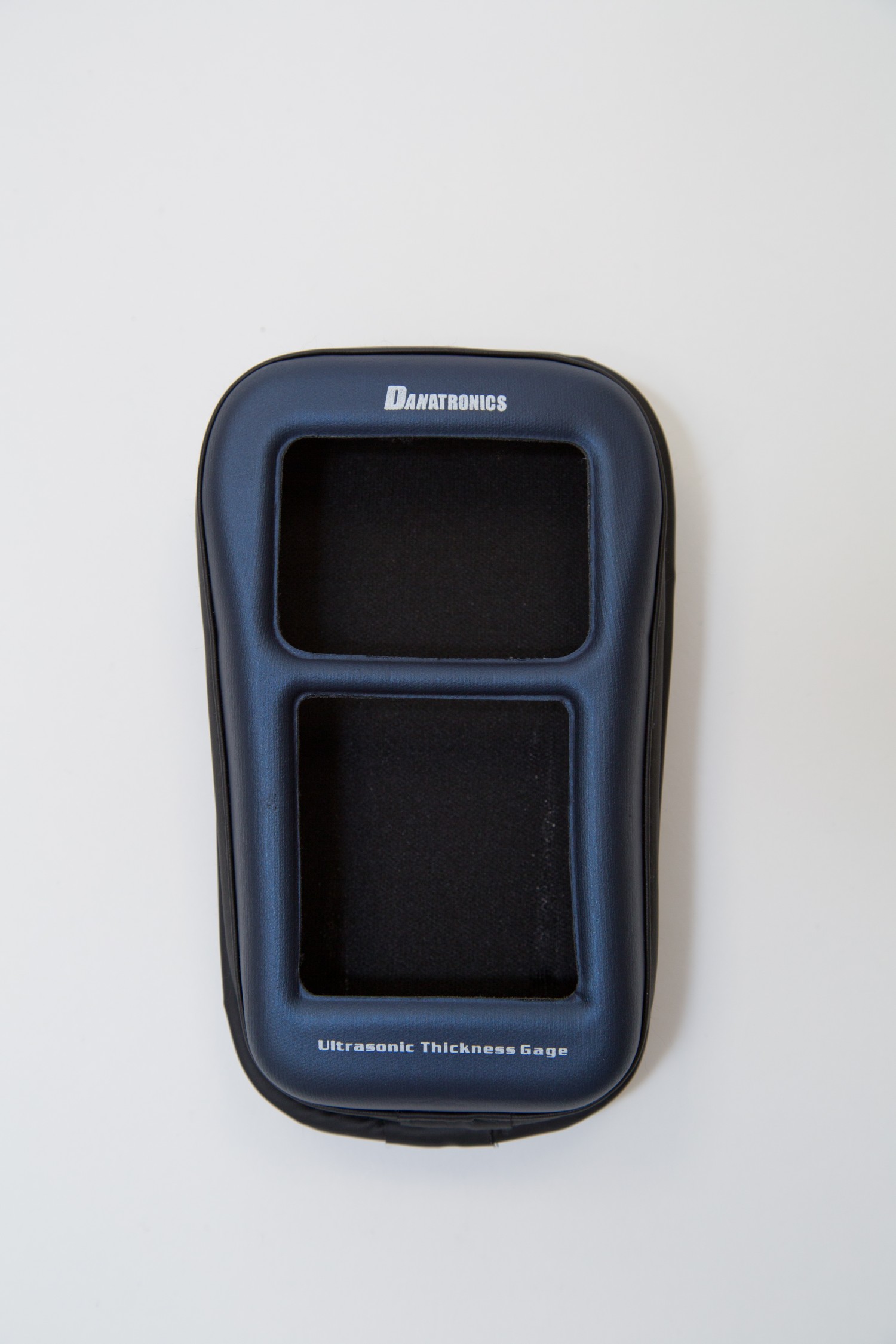

Protective Pouch
Custom protective pouch Part Number PP-09 for the EHC-09 Series.
Custom protective pouch Part Number PP-09 for the EHC-09 Series.

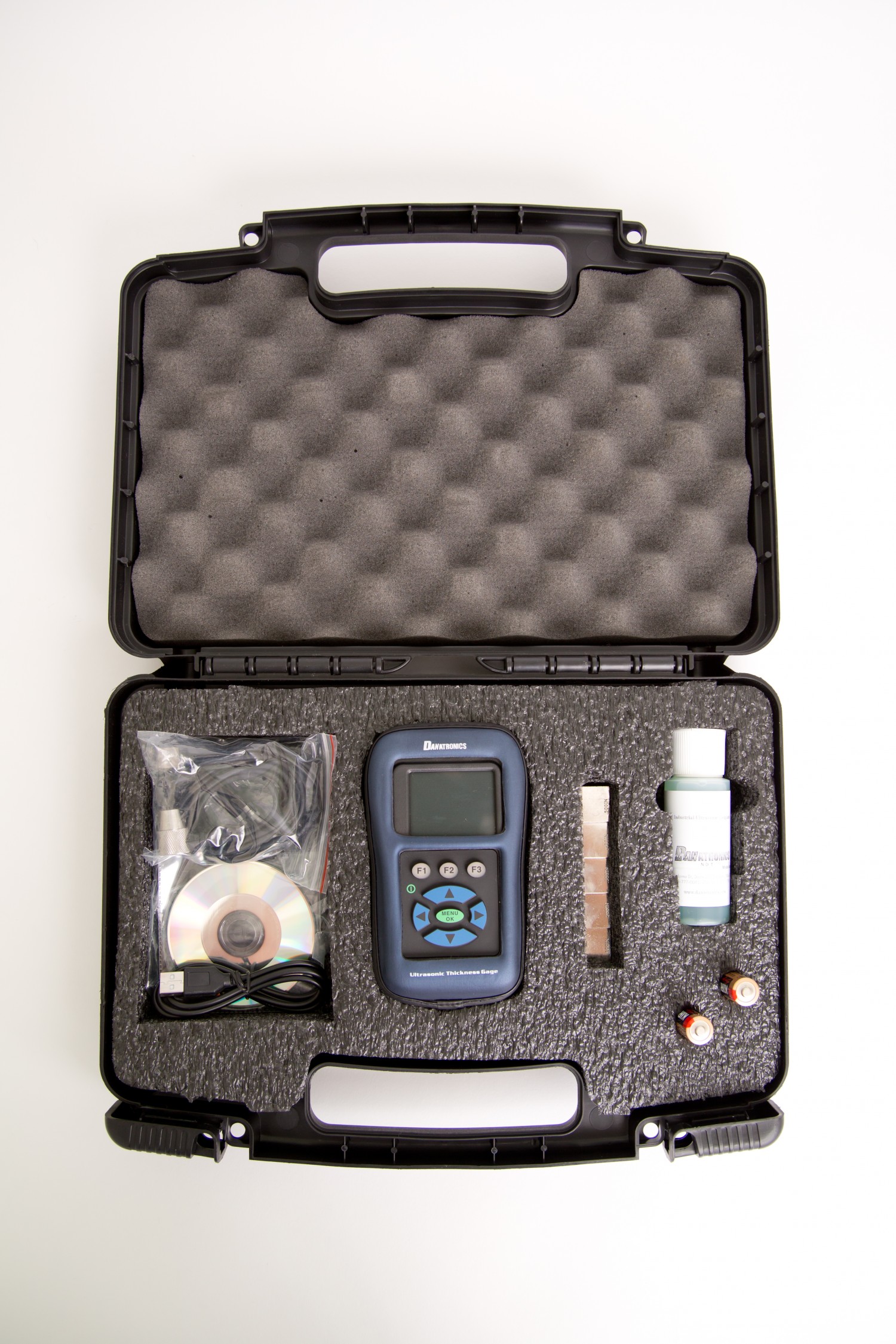

EHC Transport Case
The EHC-09 Transport Case is shown with common inclusions. (Pouch, Spare batteries and 5 step test block sold separately).
The EHC-09 Transport Case is shown with common inclusions. (Pouch, Spare batteries and 5 step test block sold separately).
Cables
Dual and single cables offered in 6 feet or other lengths upon special order. Shown left to right: DLM-06, DLM-06ACMP, LM-06
Dual and single cables offered in 6 feet or other lengths upon special order. Shown left to right: DLM-06, DLM-06ACMP, LM-06
Spring Loaded Holder
The spring loaded holder (SPH-718) is the ideal fixture to be used on small diameter applications such as tubing to prevent the probe from rocking. Shown above is the SPH-718 with the DK718 transducer inside. The probe can be rotated as well and the fixture has v-notches to assist in probe alignment.
The spring loaded holder (SPH-718) is the ideal fixture to be used on small diameter applications such as tubing to prevent the probe from rocking. Shown above is the SPH-718 with the DK718 transducer inside. The probe can be rotated as well and the fixture has v-notches to assist in probe alignment.
Couplants
We offer a variety of ultrasonic couplants from a standard gel in 2 Oz. or 12 Oz. options, to high temperature up to 1100 Degrees F. Contact us for more details.
We offer a variety of ultrasonic couplants from a standard gel in 2 Oz. or 12 Oz. options, to high temperature up to 1100 Degrees F. Contact us for more details.
AC Power
With this hardware upgrade, the EHC-09 can be used with AC Power (please note, this is not a re-charging system). In other words, with this option, the EHC-09 can be either used with AC or battery mode.
With this hardware upgrade, the EHC-09 can be used with AC Power (please note, this is not a re-charging system). In other words, with this option, the EHC-09 can be either used with AC or battery mode.
Footswitch
With this hardware option the operator can use a footswitch to save, freeze or send readings.
With this hardware option the operator can use a footswitch to save, freeze or send readings.
DLSL-09 Adapter
This Dual lemo to microdot adapter is required when using a delay line or pencil probe with our EHC-09 series.
This Dual lemo to microdot adapter is required when using a delay line or pencil probe with our EHC-09 series.
For complete list including specifications please see our transducer chart

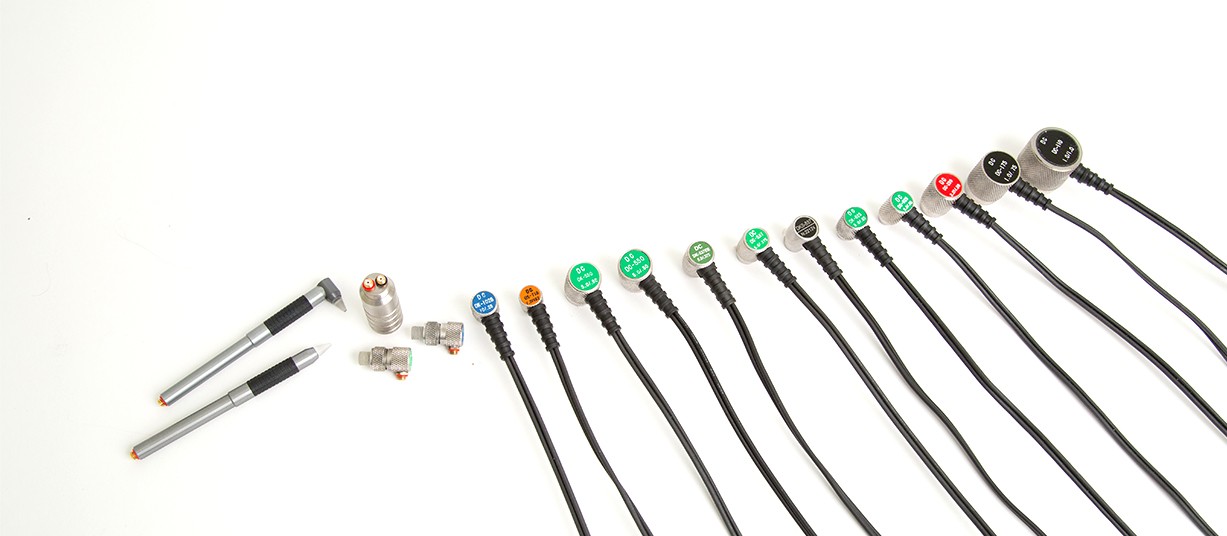

Dual Transducers
Danatronics dual transducers are stocked in a wide variety of frequencies and diameters, from 0.5mHz to 10mHz. Most of our dual transducers come standard with a potted cable and molded plug. For our non-potted dual transducers that come with microdot connectors we offer both standard and armored cables
Danatronics dual transducers are stocked in a wide variety of frequencies and diameters, from 0.5mHz to 10mHz. Most of our dual transducers come standard with a potted cable and molded plug. For our non-potted dual transducers that come with microdot connectors we offer both standard and armored cables
Delay Line Transducers
Danatronics delay line transducer are available in 5, 10 and 20 mHZ options.
Danatronics delay line transducer are available in 5, 10 and 20 mHZ options.

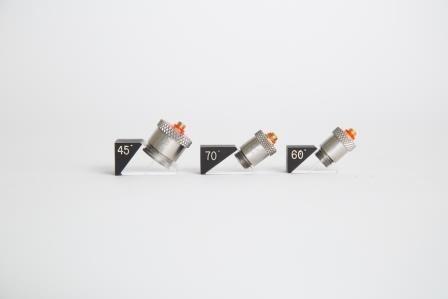

Angle Beam
Danatronics angle beam transducers are available as quick change angle beams or as AWS type probes with snail or serrated wedges
Danatronics angle beam transducers are available as quick change angle beams or as AWS type probes with snail or serrated wedges
High Temperature
The DHT-537 high temperature dual (up to 950F intermittent use) shown with optional Bell Housing and available armored Dual Lemo to Microdoct 6’ cable with molded plug (DLM-09ACMP)
The DHT-537 high temperature dual (up to 950F intermittent use) shown with optional Bell Housing and available armored Dual Lemo to Microdoct 6’ cable with molded plug (DLM-09ACMP)
Spring Loaded Holder
Available for DK718
Danatronics Spring Loaded Holder has dual v-notches for small diameter pipes and tubes to prevent probe “rocking”
Available for DK718
Danatronics Spring Loaded Holder has dual v-notches for small diameter pipes and tubes to prevent probe “rocking”
